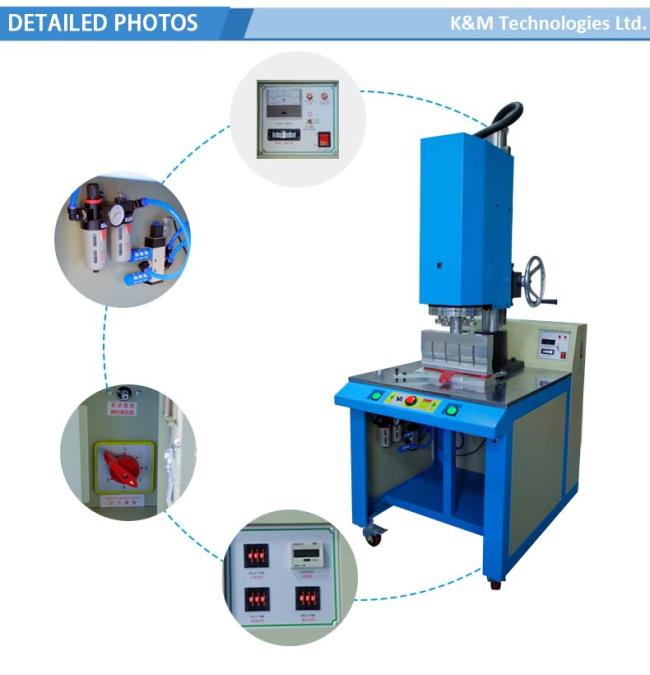

Ultrasonic Welding Equipment 15KHz For ABS PVC PP PETG Plastic
Ultrasonic Welding Equipment 15KHz For ABS PVC PP PETG Plastic Welder
The working principle of ultrasonic welding is that the current of 50 Hz or 60 Hz is converted into 15, 20, 30, or 40 kHz by the ultrasonic generator. The converted high-frequency electric energy is again converted into mechanical motion of the same frequency through the transducer, and then the mechanical motion is transmitted to the welding head through a set of amplitude modulator devices that can change the amplitude.
The welding head transmits the received vibration energy to the interface of the plastic part to be welded. In this area, the vibration energy is converted into heat energy by friction and melts the plastic. The transient pressure maintained on the plastic part after the vibration stops make the two plastic parts solidify into one by molecular connection.
The high-power 15KHz ultrasonic welder is suitable for welding large-sized products, the ultrasonic welding machine is quick, precise, and effective in welding.
Technical Parameters:
| Model: | KM-ME-P1542 |
| Output power: | 4200W |
| Operating frequency: | 15KHZ |
| Working stroke: | 100mm |
| Welding time: | 0.01-9.99 SEC |
| Welding area: | OD 150 mm~350 mm |
| Weight: | 290 kg net |
| Working voltage: | 220 10V |

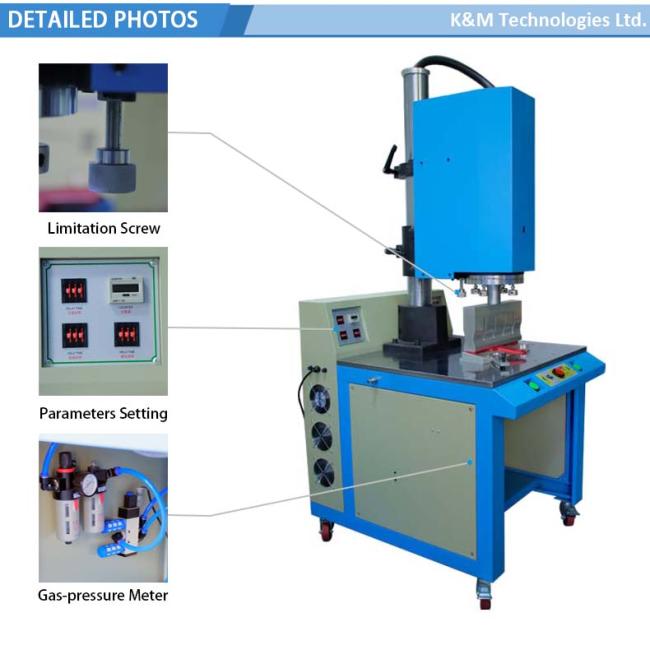

Main Components:
| Transducer: | Imported piezoelectric ceramics, strong and stable output. |
| Amplitude transformer: | Japanese amplitude transformer, strong and wear-resisting. |
| Circuit: | Frequency automatic compensation circuit. |
| Oscillation system: | Self-excited oscillation circuit. |
| Machine body: | The machine is formed by gravity casting. |
| Equipment: | Square force column, reduce pitch, dovetail through frame mechanism. |
