20KHz Ultrasonic Welding Horn Ultrasonic Welding Sonotrode For Ultrasonic Welding Machine
20KHz 270*25mm Stainless steel Ultrasonic welding tooling, Ultrasonic Horn, Mould
The frequency of the ultrasonic welding horn is analyzed and calculated by the professional software according to the material, size, and shape of the workpiece by the ultrasonic manufacturer. The frequency of each welding horn must be tested and matched with the ultrasonic generator and transducer before it is done. Usually, the welding horn of the ultrasonic plastic welding machine frequency is divided into 15KHz, 20KHz, 28KHz, 30KHz, 35KHz, 40KHz, and so on. The higher the frequency is, the shorter the welding horn is, all ultrasonic horns are half wavelength.
Technical parameters:
| Product Name | Stainless steel Ultrasonic welding Mould |
| Frequency | 20KHz |
| size | 270*25mm |
| Welding Area | 270*25mm |
| Size of screw | M12 or 3/8 |
| Weight | 4.5kg |
| Material | Stainless steel |
| Usage | for ultrasonic welding, sealing |
| Color | Metal Color |
Features:
1. High hardness, not easy to wear;
2. Strong and durable, not easy to crack;
3. With low cost compared with titanium alloy;
4. Cutting chemical fiber fabrics without loose edges;
5. Longer horn service time;
6. High stability；

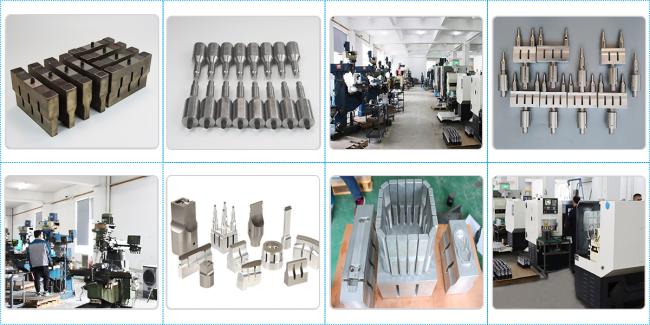

Detailed Photos:
Packing:
