Digital Ultrasound Welder 2500W With High Precision For Plastics Ultrasonic Welding Machine
20KHz 2500W Digital Ultrasound Welder, ultrasonic plastic welding machine for high precision plastics
Description:
The series has a standard intelligent circuit system, pressure sensor, 10 inches outer touch screen; Equipped with welding table balance system, micrometer-scale positioning system, linear sliding rail lifting system, grating ruler measurement positioning system; With more powerful welding management and data management system, the whole process control throughout the welding can be realized. It is fully qualified for the welding task of more complex and precise welding parts in the current manufacturing field and it can meet the diverse needs of customers.
Technical parameters:
| Product Name | ultrasonic plastic welding machine for high precision plastics | |
| Model | KM-FU2025-2025 | |
| Frequency | 20Khz | |
| Power | 2500W | |
| Language | Chinese/English | |
| Work Stroke | 100mm | |
| Voltage | 200-240VAC stable output | |
| Welding amplitude | 10~100% adjustable (1% accuracy) | |
| Standardized configuration for this model | Pressure-trigger mode | |
| Standardized configuration for this model |
Depth Check (0.01mm precision) Reinforced Steel Profile for Press Structure |
|
| Linear guide blocks are used for welding movement and horn adjustment | ||
| Ports | Enough connection terminal ports for easy automation control | |
| Interface | 10-inch Human-machine interface | |
| Mode | Welding mode: | Time, Energy, Contact shut-off, Absolute Depth, Relative Depth, pressure trigger |
| Trigger mode: | Delay, Pressure, Depth | |
| Air-pressure mode | ||
| No-fault power | ||
| 4-core 32-bit processor | ||
| 485 communications | ||
Different models are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 3200w | 100MM | 220V+-10% | 0.2-0.7Mpa |
| 20kHz | 3000w | 100MM | 220V+-10% | |
| 35kHz | 1200w | 100MM | 220V+-10% |
Features:
| Reinforced Steel Profile for Press Structure |
| Linear guide blocks are used for welding movement and horn adjustment |
| Enough connection terminal ports for easy automation control |
| Real-time frequency auto-tuning function |
| Amplitude compensation |
| Frequency compensation |
| Welding horn resistance analysis + protection |
| Over-load protection |
| Voltage protection (input) |
| Transducer voltage protection |
| Quality control (interactive check between time, energy, absolute depth, relative depth) |
| Welding record |
| Data collection |
| Data export |
| Scanned data import |
| Power curves |
| Speed inspection |
| Pressure verification |
| 10 groups of mold number can be selected and named freely |
| Auto-switching between resistance analysis and pressure verification |
| No-fault power |
| It features in a higher power, good quality, and stable welding results. |

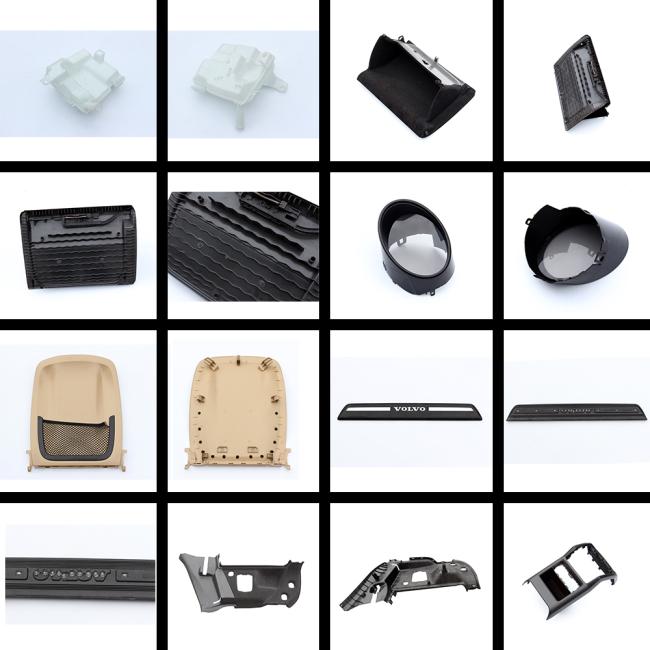

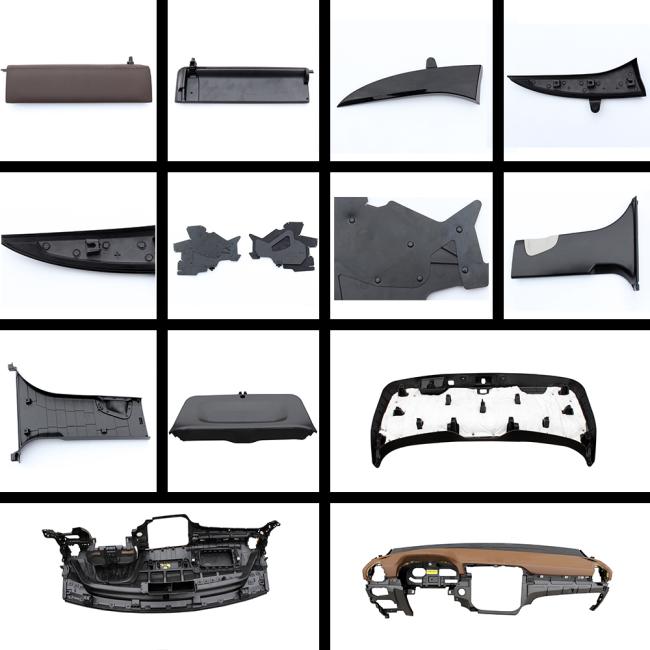

Application:
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production line.
1-2 units we could send by EXPRESS(DHL, UPS, FedEx, TNT, EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic welders?
One year Warranty with none human damage.
In this period factory, will be responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)

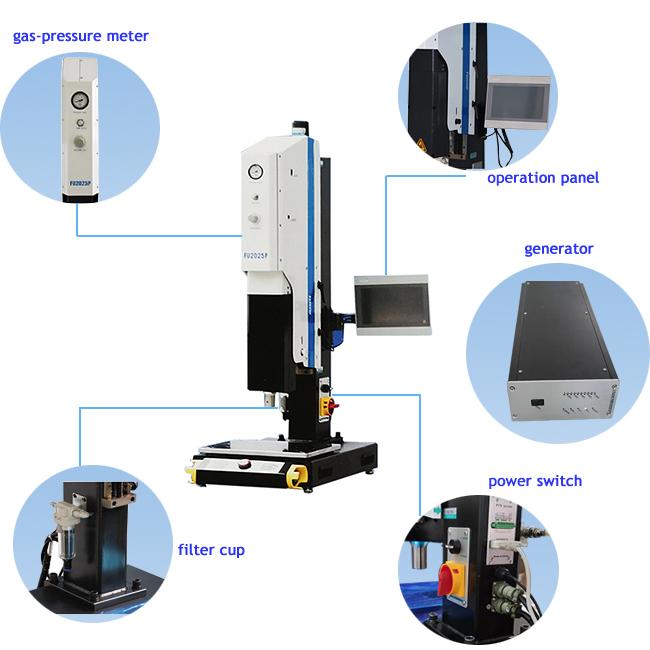

Detailed Photos:

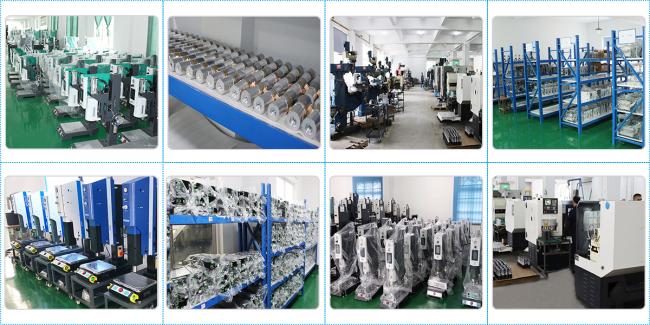

Warehouse:
Packing:
