2500W 15kHz Digital Ultrasonic Welding Press With Auto Tuning Function Plastic Welding
Digital Type Ultrasonic Plastic Welding Press with Auto-Tuning Function
Technical parameters:
| Product Name | Ultrasonic Plastic Welding Press | |
| Voltage | AC 220V 50/60HZ | |
| Dimensions (WxHxD) [mm] | 670*400*1160 | |
| Weight [kg] | 258KG | |
| Welding head operating stroke [mm] | 75-100mm | |
| Air pressure rate[MPa] | 0-0.6MPa | |
| Amplitude Internal | 60-100 at 5% steps | |
| Welding Time | 0-9.999 Seconds | |
| Input | 22-28V DC/7mA | |
| Output | 22-26V DC/250mA | |
| Energy Mode | Integrated | |
| Ambient Temperature | -10ºC--40ºC | |
Different models of this series are available:
| Frequency | Power | Work Stroke | Voltage |
| 15kHz | 2500w | 75MM | 220V+-10% |
| 20kHz | 2000w | 75MM | 220V+-10% |
| 20kHz | 3000w | 100MM | 220V+-10% |
Features:
| * Real-time frequency auto-tracking display |
| * Welding modes: Time, Energy, Grounding |
| * Amplitude division function |
| * Welding amplitude: 10%~100% adjustable (1% accuracy) |
| * Amplitude compensation |
| * Welding horn impedance analysis+protection |
| * Overload protection |
| * Voltage protection |
| * Transducer voltage protection |
| * Quality management (time and energy) |
| * Welding record (operation statistics) |
| * Powerful and stable welding result. |
Our advantages:
•Universal applications in all industries
•Ultrasonic welding, sealing, cutting, stamping, riveting, and embossing of thermoplastics
•Possible to exchange ultrasonic components and change application frequencies
•Extremely high degree of process reliability and quality
Application:
Welding dissimilar thermoplastic materials according to their polymer compatibilities, such as PP, PVC, PE, PET, ABS, composites, tissues, fleece, or films.
FAQ:
1. What's the warranty of your ultrasonic welding presses?
12 months with no human destruction.
2. Can we agent your ultrasonic welding presses in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
3. What is the bulk order delivery time?
Order lead time will be 5-10 working days
4.Can I have my LOGO on my products?
Sure, OEM is available, please send your artwork.
Detailed Photos:

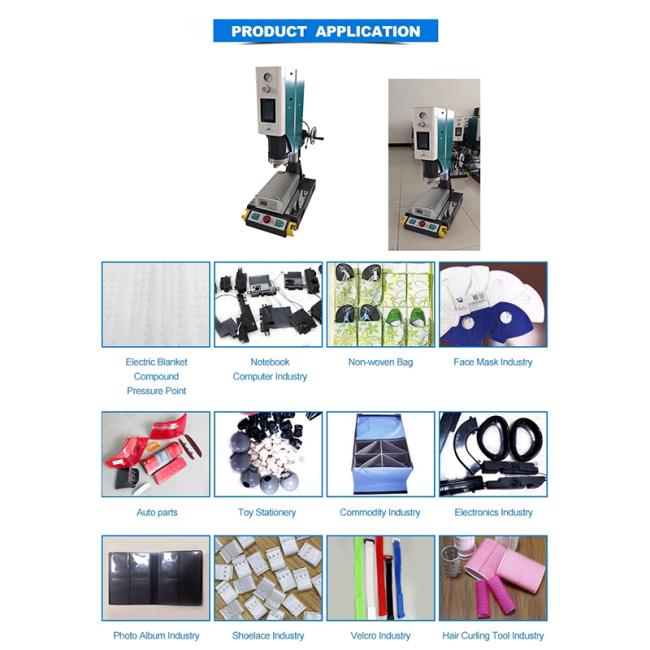

Application:
