20KHz Ultrasonic Welding Set with Generator Transducer and Horn For Nonwoven Ultrasonic Welding Machine
Ultrasonic Welding Accessories for Nonwoven Welding Machine

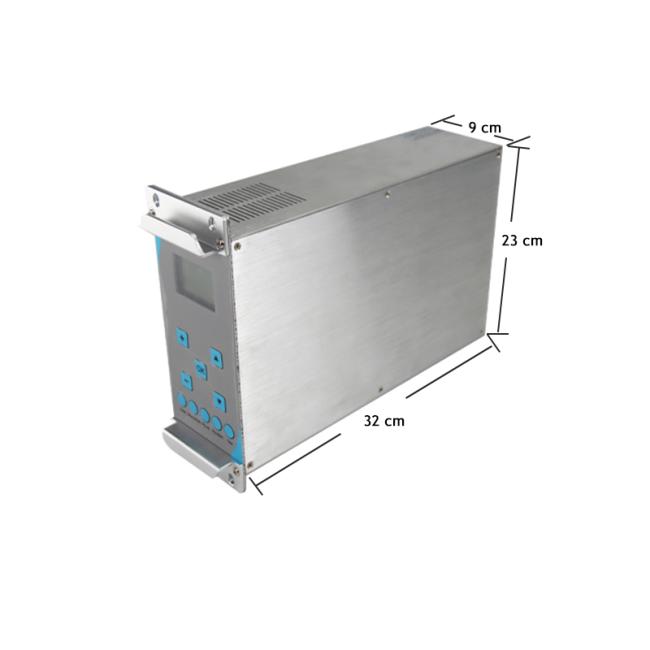

This type of ultrasonic set is widely used in mask-making machines and fabric welding machines. The generator is the newly upgraded type with a more compact design and a more stable operating system. The transducer is our classical type with a high reputation. The horn is customized as per the customer's demands and made of SKD11 steel with a hardness-treated surface. The flange is made of stainless steel.
Technical parameters:
| Dimension: | L90mm×W320mm×H230mm |
| Net Weight: | 4Kg |
| Output power: | 0-2000W |
| Output voltage: | 0-220V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 20KHz |
| Power supply: | AC220V 50Hz |
| Working mode | Continuous |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
Transducer:
| Resonant Frequency | 20KHZ |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | CT:≤13nF, Free capacitance of 20KHz ultrasonic transducer |
| Working Mode | continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the converter, stainless steel for the booster. |
| Net weight of the main body | 2.6KG |
Horn:
| Dimension | Length 110mm ×Width 20mm(customizable) |
| Frequency | 20KHZ |
| Net weight of the main body | 3.1KG |
| Material | Steel(customizable) |

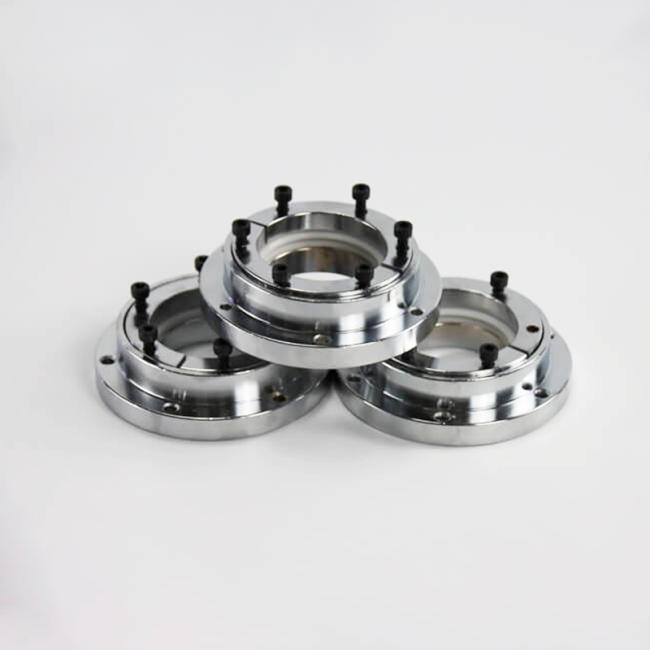

Flange:
| Frequency | 20KHZ |
| Inner Diameter | 33mm |
| External Diameter | 106mm |
| Thickness | 30mm |
| Material | Steel |
| Net weight of the main body | 1.1KG |
Features of the Generator:
1. Compact structure, simple and elegant appearance;
2. Easy to operate and flexible to move;
3. Wide frequency tracking range;
4. High precision of frequency tracing;
5. Large ultrasonic energy intermittent output with fierce power;
6. High control precision, safe and reliable
Application:
20KHz continuous ultrasonic welding set is widely applied for welding face masks, toys,table clothes,etc. that used in the daily necessities industries.
