High-Efficiency Digital Ultrasonic Welder For Plastic Parts ABS,PVC Ultrasonic Welding Machine
20khz 2500w Digital Ultrasonic Plastic Welding Press Plastic Welding Machine
Ultrasonic Welding Equipment is an ultrasonic welder designed for welding various plastics (PVC, PP, PE, ABS, etc.) and nonwoven fabrics and metal welding. The ultrasonic welding machine consists of an ultrasonic welding generator, a transducer(converter and booster), a welding horn(made of steel, aluminum, or titanium), and a welding rack. It can join the pieces of material together by converting high-frequency electrical energy into mechanical energy( friction creates heat )and transmitting heat to the materials to be welded and making them melt and then solidify reaching the purpose of welding.
The ultrasonic plastic welding processing is fast, clean, economical, and environmentally friendly and with these characteristics, ultrasonic welding has gradually replaced the traditional plastic processing technology.
Technical specifications:
| Product name | 20kHz Ultrasonic welding machine |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Operating frequencies* [kHz] | 20KHz |
| Welding head operating stroke [mm] | 75mm/100mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Power [W] | 2500W |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.005-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Features:
| Amplitude segmentation function. |
| Welding amplitude 10-100% adjustable (1% accuracy) |
| Amplitude compensation function. |
| Mold impedance analysis+protection |
| Overload protection. |
| Voltage protection (input) |
| Transducer voltage protection |
| Quality management (time and energy) |
| Welding record (operation statistics) |
| Powerful, high-quality, stable welding results. |
| 4-core, 32-bit processor |
Application:
Used for welding the series products as below:
1. Toy industry: plastic toys, water guns, children dolls, plastic gifts, etc.
2. Electronic products: audiotape boxes and core wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc.
3. Household appliances: electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle, computer, etc.
4. Stationery: aquarium ruler, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container, etc.
5. Sports industry: table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path to indicate the brand, the X Display Stand, and other sports equipment, etc.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Detailed Photos:

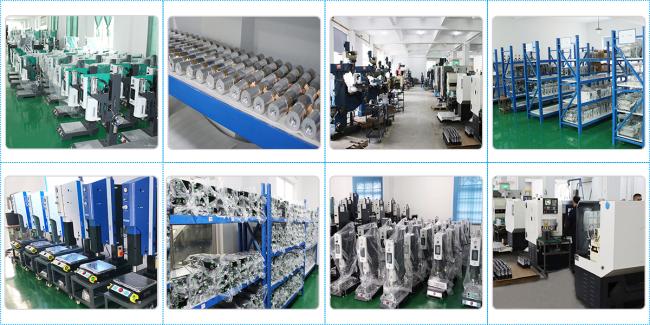

Warehouse:
Packing:
