15kHz Ultrasonic Welding Machine Ultrasonic Welder for Plastics KM-DS300-1526
15khz 2600w Digital Ultrasonic Plastic Welding Press Plastic Welding Machine
Working principle:
When the ultrasonic wave works on the surface of the thermoplastic part, it will create thousands of vibrations per second. And the vibration will transfer the power to the welding area when it reaches a certain degree, then it will create a high temperature at this moment. Due to the bad conductivity for heat, it can not cool heat in time, then the contact surface will be melted quickly and welded together by some pressure to achieve the effect of welding.KnmTech welder's integrated and flexible welding solutions improve welding precision, control, and efficiency, and ensure welding quality and promote operational efficiency.
Components:
The ultrasonic welding machine is composed of an air pressure drive system, control system, ultrasonic generator, transducer, sonotrodes, and mechanism, etc.
Models & Specifications:
There are various kinds of ultrasonic welding machines for different applications, materials, and sizes. The Power is from 800W to 4200W, and the frequency is from 15KHz to 40KHz.
Technical specifications:
| Product name | 15kHz Ultrasonic welding machine KM-DS300-1526 |
| Model | KM-DS300-1526 |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Operating frequencies* [kHz] | 15KHz |
| Welding head operating stroke [mm] | 75mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Power [W] | 2600W |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.001-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different models are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 2600W | 75MM | 220V±10% | 2kgf-8kgf |
| 15khz | 3200W | 75MM | ||
| 15khz | 4200W | 100MM | ||
| 20kHz | 2500w | 75MM | ||
| 20kHz | 3000w | 75MM | ||
| 28KHz | 1200W | 75MM | ||
| 30KHz | 1200W | 75MM | ||
| 35KHz | 1200W | 75MM | ||
| 40KHz | 800W | 75MM |
Features:
| Amplitude segmentation function. |
| Welding amplitude 10-100% adjustable (1% accuracy) |
| Amplitude compensation function. |
| Mold impedance analysis+protection |
| Overload protection. |
| Voltage protection (input) |
| Transducer voltage protection |
| Quality management (time and energy) |
| Welding record (operation statistics) |
| Powerful, high-quality, stable welding results. |
| 4-core, 32-bit processor |
Application:
The ultrasonic welder is widely used in the auto industry, electron industry, medical treatment industry, office supply, packaging industry, and toy industry, etc.
Plastic electron: USB flash disk, SD card, CF card, USB plug-in board, prepayment water meter, ammeter, the cover of mobile phone, communication apparatus, battery case, charger, cordless telephone, accessories of mobile phone, valve controlled seal maintenance lead-add battery, 3-inch floppy, etc.
Plastic parts of automobile body: car door, automobile instrument, car light and mirror, sun visor, interior trim part, filter, etc.
Reflectorized material: reflectorized spike, fender-guard, inhaul cable, plastic filter for motorcycle, radiator, oil reservoir, oil cup, water tank, fuel tank, air hose, and tray filter board, etc.
Toy & stationery: PP cavity board, toner cartridge, ink box, pen cover, documents folder, photo album, folding box, etc.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Detailed Photos:

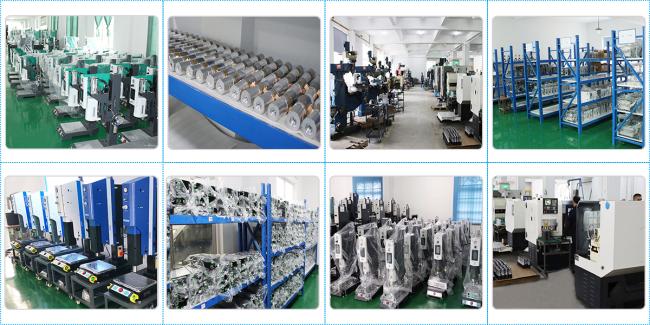

Warehouse:

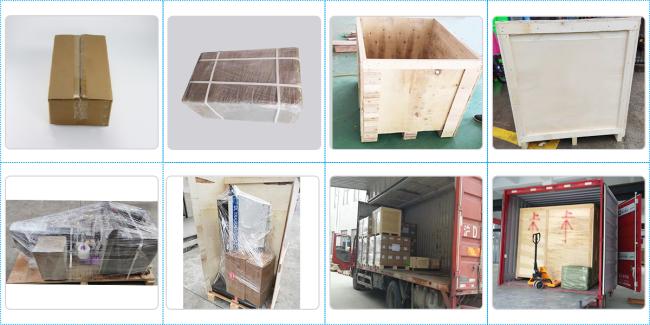

Packing:
