40Khz Ultrasonic Welding Booster for ultrasonic welding transducer

The ultrasonic welding system includes a generator, a transducer(converter and booster), and a horn/sonotrode. The ultrasonic booster adjusts the vibrational output from the transducer and transfers the ultrasonic energy to the horn. The booster also generally provides a method for mounting the ultrasonic stack to a support structure. The ultrasonic horn then contacts and delivers power to the parts to be welded to achieve the purpose of ultrasonic welding, cutting, sealing, and so on.

Technical parameters:

Features:

1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied

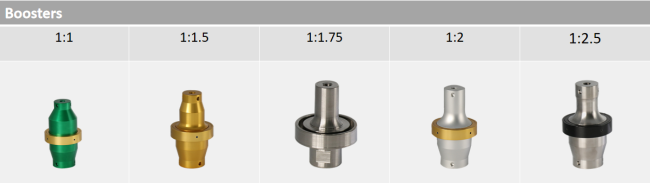

Booster gain:

1.0:1
1.5:1
1.75:1
2.0:1
2.5:1

3:1

Detailed Photos:
