Class Approval Offshore Fire Hose Winch Ship Deck Equipment

Description

It is used for reel and storage if electric cable or fire hose. It has large drum storage capacity.

Main Tehnical Specification

1. Safety Pull Capacity: 50KN

2. Speed: 8-30m/min

3. Drum Capacity: 40 to 250m

4. Single/Double Drum

5. Suction & Delivery Hose Dia. 254mm (Fire Retardant Certificate)

6. Control position: Remote and Local control;

7. Power Supply: Electric driven motors 7.5kW (415V/50Hz) for offshore use, included marine break, control box (IP56) and wireless remote control.

8. Material: Mild Steel & Stainless Steel,

9. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,

10. Certificate: IACS Classification Certificates, Mill certificate

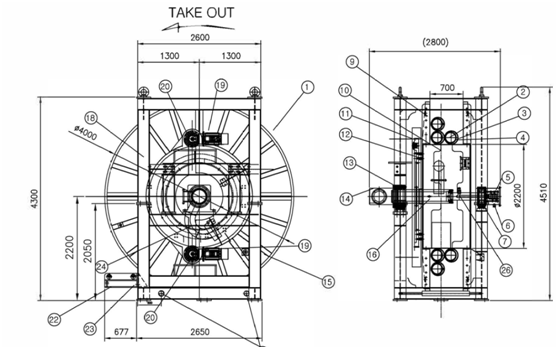

Drawing Of Class Approval Offshore Fire Hose Winch Ship Deck Equipment
