Product Overview

Marine steel wire rope reel is designed for safe storage, handling and management of wire ropes on ship decks.

Based on JIS F 3430-1980 standard, this reel is widely used for storing mooring wires, towing wires and auxiliary steel cables.

Compared with drum winches, the reel provides a simple, low-maintenance solution focused on storage rather than load bearing.

Lightweight aluminum alloy versions are available to reduce weight and improve handling efficiency.

Optional locking devices ensure the reel remains stable and secure during transportation and storage.

Quick Specifications

• Applicable Rope Diameter: 13–32 mm → Matches common marine wire ropes
• Drum Capacity: 120–200 m → Storage capability based on rope size
• Structure Type: Free rotating drum → Easy winding and unwinding
• Material Options: Carbon steel / Stainless steel / Aluminum alloy → Weight vs durability selection
• Surface Treatment: Sa2.5 + epoxy / Polished → Corrosion protection
• Locking Device: Available → Prevents rotation during storage
• Customization: Size and capacity can be tailored
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Main Technical Parameters (JIS F 3430-1980)

Selection Guide

Step 1 – Select rope diameter → 13–32 mm range

Step 2 – Confirm storage length → Match drum capacity

Step 3 – Select material → Steel for durability / Aluminum for lightweight

Step 4 – Confirm locking requirement → Required for transport stability

Step 5 – Confirm coating and certification

Structure

Drum | Shaft | Support frame | Bearing system | Optional locking mechanism

Custom Attributes

• Aluminum alloy option → Lightweight and easy handling
• Locking device → Prevents unwanted rotation
• Smooth drum surface → Protects wire rope
• Custom dimensions → Fit project-specific requirements

Inquiry Guide

Please provide rope diameter, rope length, material preference, installation environment and certification requirements.

How It Works

Wire rope is wound around the drum → drum rotates freely via shaft → rope stored safely → locking device secures drum when not in use.

Applications

Wire rope storage | Deck equipment | Offshore support vessels | Shipyard handling

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Drawing & Photos

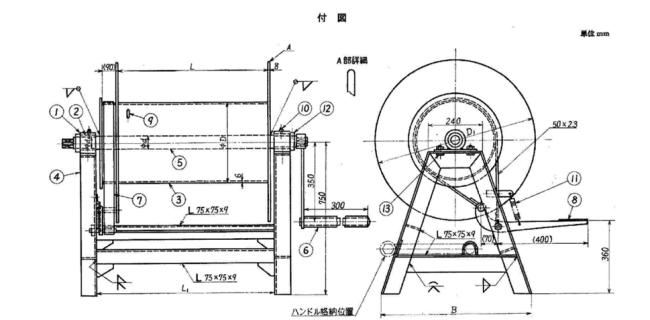

General arrangement drawing and product photos

Ordering

Specify: rope diameter, storage length, material, locking device, coating, certification

FAQ

Q1: Is this reel used for lifting?
A: No, it is designed for storage, not load-bearing operations.

Q2: Can aluminum reels be used offshore?
A: Yes, with proper surface treatment and design.

Q3: Can size be customized?
A: Yes, dimensions and capacity can be tailored.
