Product Overview

CB/T 3468-92 Type B steel wire rope storage reel is designed for safe storage and management of marine steel wire ropes.

Equipped with manual brake, worm gear reducer and hand wheel operation, it allows controlled winding and unwinding of wire rope.

The drum diameter is designed according to wire rope diameter to reduce bending stress and extend rope service life.

Suitable for onboard rope storage applications where controlled handling and protection of steel wire rope are required.

Quick Specifications

• Wire Rope Diameter: 13–56 mm → Defines rope compatibility
• Capacity: 120–300 m → Defines storage length
• Type: CB/T 3468-92 Type B → Marine standard compliance
• Drive: Manual hand wheel → Safe and simple operation
• Brake: Manual brake → Ensures controlled stopping
• Gear: Forged gear with hardened surface → Improves durability
• Drum Design: Diameter optimized → Reduces rope damage
• Structure: Weight-reduced gear wheel → Maintains strength while reducing weight
• Lubrication: All moving parts lubricated → Ensures smooth operation
• Installation: Bolted base → Easy installation

Main Technical Parameters

Selection Guide

Step 1 – Select Rope Diameter → 13–56 mm based on wire rope

Step 2 – Confirm Storage Length → 120–300 m requirement

Step 3 – Confirm Drum Diameter → Matched to rope to reduce bending stress

Step 4 – Confirm Operation Method → Manual hand wheel with brake

Step 5 – Confirm Installation → Bolted base arrangement

Step 6 – Confirm Coating Requirement → Shop primer or customized paint

Structure & Components

Drum | Worm gear reducer | Forged gear | Manual brake | Hand wheel | Shaft | Base frame

Custom Attributes

• Rope Diameter: 13–56 mm → Compatibility
• Capacity: 120–300 m → Storage
• Gear: Forged & hardened → High durability
• Lubrication: Full lubrication → Smooth operation
• Drum Design: Optimized → Protects wire rope
• Weight Design: Lightened gear → Reduced weight
• Installation: Bolted → Easy fixing
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Inquiry Guide

Please provide rope diameter, required capacity, installation condition, and paint requirement.

How It Works

The rope is wound onto the drum through manual rotation of the hand wheel. The worm gear mechanism provides torque control, while the brake ensures safe stopping and holding.

Applications

Ship deck rope storage | Steel wire rope management | Offshore equipment support

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; forged and hardened gear, optimized drum design, reduced rope wear, reliable manual operation.

Drawing & Photos

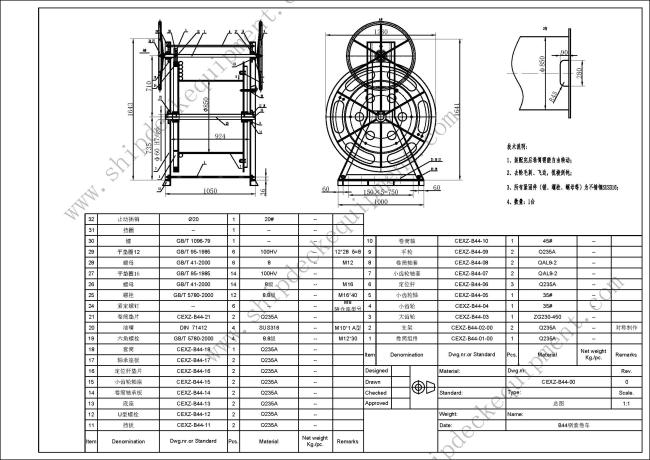

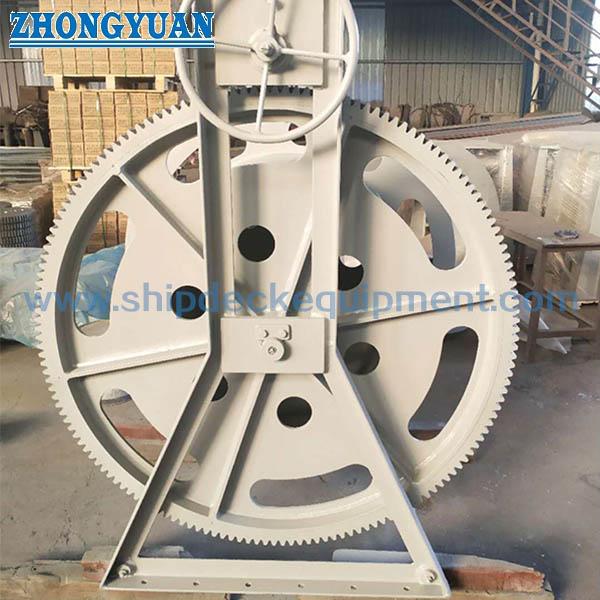

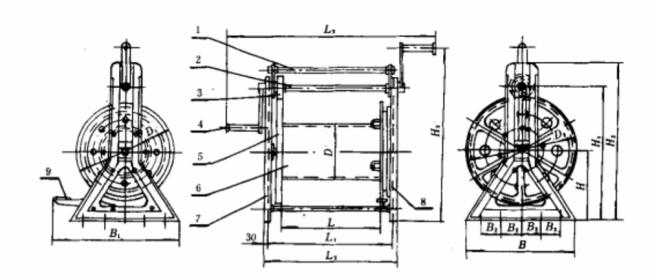

General arrangement drawing | Product photos

Ordering

MOQ: 1 Unit | Delivery Time: 30–60 Days | Please confirm paint requirement when ordering

FAQ

Q1: Why is drum diameter important?

A: Proper drum diameter reduces bending stress and extends wire rope life.

Q2: What ensures durability of the gear system?

A: Forged gears with hardened surface provide high strength and wear resistance.

Q3: Can paint be customized?

A: Yes, coating system can be specified according to project requirement.
