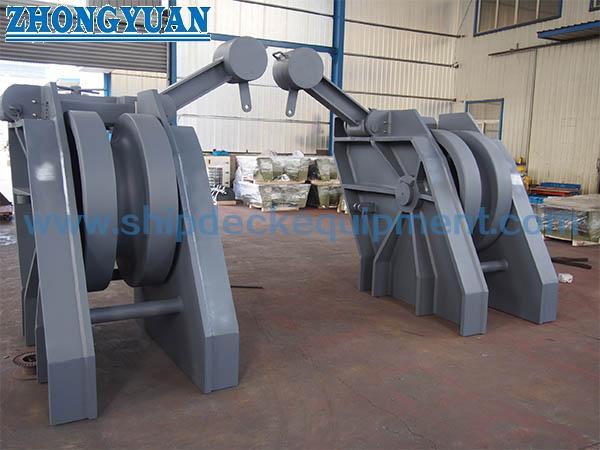

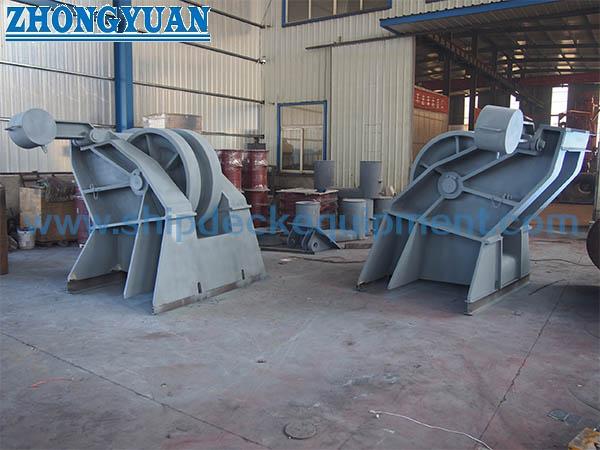

JIS F 2031 Roller Bar Type Anchor Chain Cable Stopper Ship Mooring Equipment
JIS F 2031 Roller Bar Type Anchor Chain Cable Stopper Ship Mooring Equipment
Description:
Chain cable stopper is positionedin front of windlass, clamping anchor chain. It shares pull load of windlass suffered. So, the windlass design will be less heavy. Chain stopper is key mooring equipment.
Main Technical Specification:
1. Technical Standard: JIS F2032
2. Type: Bar Type A&B
3. Chain Size: 70-132mm
4. Materials: Mild Steel, C-Mn Steel, Stainless Steel, Casting Steel, Nodular Cast Iron, Steel Forging,
5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.
6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
7. Can be Customized
Main Technical Parameter:
| Nominal Chain Dia.(mm) |
h | h1 | h2 | L | L1 | L4 | B | b | D | Weight(kg) |
| 70-73 | 125 | 422 | 860 | 660 | 640 | 241 | 980 | 115 | 584 | 1096 |
| 76-78 | 133 | 450 | 918 | 700 | 680 | 254 | 1046 | 123 | 624 | 1316 |
| 81-84 | 143 | 483 | 983 | 760 | 720 | 279 | 1110 | 134 | 672 | 1608 |
| 87-90 | 153 | 515 | 1055 | 810 | 770 | 295 | 1190 | 143 | 720 | 1938 |
| 92-95 | 162 | 545 | 1115 | 860 | 810 | 317 | 1250 | 151 | 760 | 2286 |
| 97-102 | 175 | 584 | 1195 | 920 | 860 | 337 | 1320 | 161 | 816 | 2787 |
| 105-107 | 185 | 617 | 1265 | 981 | 900 | 364 | 1390 | 170 | 864 | 3274 |
| 111-114 | 195 | 651 | 1335 | 1026 | 940 | 376 | 1460 | 180 | 912 | 3874 |
| 117-122 | 208 | 695 | 1427 | 1100 | 995 | 408 | 1550 | 191 | 976 | 4600 |
| 127-132 | 225 | 750 | 1542 | 1190 | 1060 | 441 | 1660 | 207 | 1056 | 5750 |

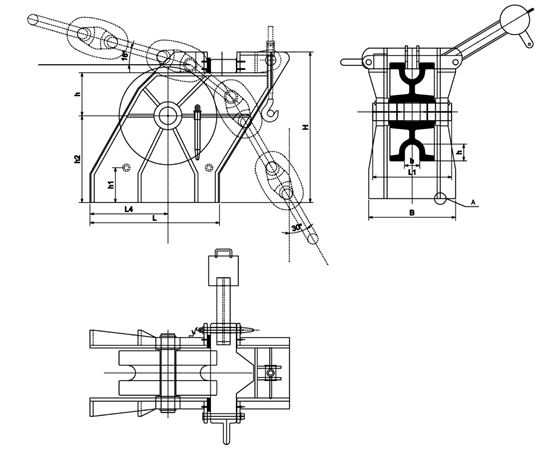

Drawing of JIS F 2031 Roller Bar Type Anchor Chain Cable Stopper Ship Mooring Equipment
