Description:

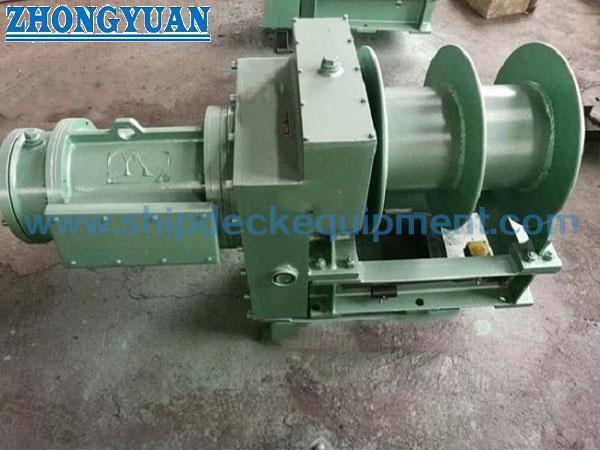

ISO 7364 electric motor driven 10 / 16 KN marine accommodation ladder winch mainly used for handling accommodation ladders on commercial vessels as well as hoisting and sliding the pilot ladders. This winch is satisfied with international standard ISO7363 and Chinese standard GB/1392-1985, it is of compact structure equipped with electric control switch, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case ship’s lost power.
We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.
Main Technical Specification:
- Standard: ISO 7364:2016
- Type: Electric Single Drum
- Factory Testing: Running test without load, Drum load test, Static test under 1,5 holding load;
- Working Load: 10KN, 16KN;
- Speed(m/min):8-12m/Min
- Wire Rope Dia. 13 (mm)
- Material: Mild Steel,
- Power: Electric
- Control: Local or Remote Control
- Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.
Main Technical Parameters:
| Model | 10kN | 16kN |
| Drum Load (kN) | 10 | 16 |
| Supporting Load (kN) | 30 | 48 |
| Hoisting Speed (m/min) | 8.09/10 | 9.85/11.64 |
| Winding Wire Layer On Drum | 3 | 3 |
| Wire Capacity (m) | 37 | 50 |
| Wire Rope Size | 6x37-13.0-170-1 | 6x37-13.0-170-1 |
| Electric Transmission Ratio | 75.43 | 69.48 |
| Manual Transmission Ratio | 30.73 | 30.73 |
| Total Efficient | 0.83 | 0.858 |
| Electric Motor Type | YZ132L-6-H | YZ132L-6-H |
| Rated Output (kN) | 2. 2/ 2.5 | 3.7/4.0 |
| Rated Speed (rmp) | 890/1100 | 930/1130 |
| Voltage Frequency | 380V 50HZ/440V 60HZ | 380V 50HZ/440V 60HZ |
| Duty Factor (min) | 30 | 30 |
Drawing of ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment
