Aluminium Basket 2.5inch Voice Coil 300W RMS Coaxial PA Speaker

Price Negotiable
Price: $20.00 - $30.00 / Piece
MOQ: 10 Piece/Pieces
Delivery Time: Negotiable
Brand: OEM
Product Description

10 inch woofer speaker for pro audio 10 inch bass speaker 98dB

Product Description


Features :

-  Professional woofer speakers from 10"-18" optional

- 600W continuous program power capacity, 300W RMS power handling

- 98dB sensitivity 1w/1m
- 50hz-4khz Frequency response
- 2.5" High temperature CCAW voice coil wire and fiberglass former
- Ideal for compact 2-way speaker system  .

Specification
Nominal diameter
260/10
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm

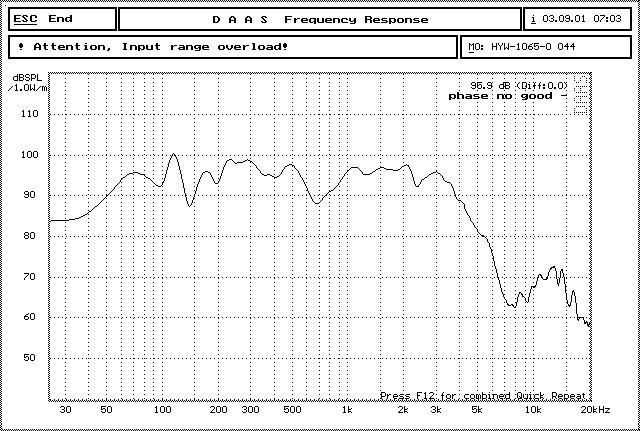

Frequency response
50-4k
Hz
Magnet size
145x20
mm
Magnet material
Ferrite

Sensitivity (1w/1m)
98
dB
Nominal power handling
300
Watts
Continuous power handling
600
Watts
Voice coil diameter
65/2.5
mm/ inch
Winding material
CCAW

Cone material
Paper

Surround material
Cloth

T/S Parameter
Fs
61.2
Hz
Re
5.2
Ω
Qes
0.55

Qts
0.53

Qms
12.32

Vas
36.2
L
Rms
1.0
kg/s
Cms
0.20
mm/N
Mms
33.2
gr
BI
11.0
N/A
Rp
60.5
Ω
Lp
33.9
mH
Cp
498.6
uF
Le
0.7
mH
Xmax (one-way)
3.5
mm
Mounting information
Overall diameter
261/10.28
mm/inch
Bolt Circle diameter
247/9.72
mm/inch
Baffle Cutout diameter
230/9.06
mm/inch
Total Depth
117/4.61
mm/inch
Mounting depth
103/4.06

Flange thickness
12/0.47
mm/inch
Shipping information
Net weight
3.8
KG
Shipping weight
4.5
KG
Shipping box
300x300x140
mm



Our Company

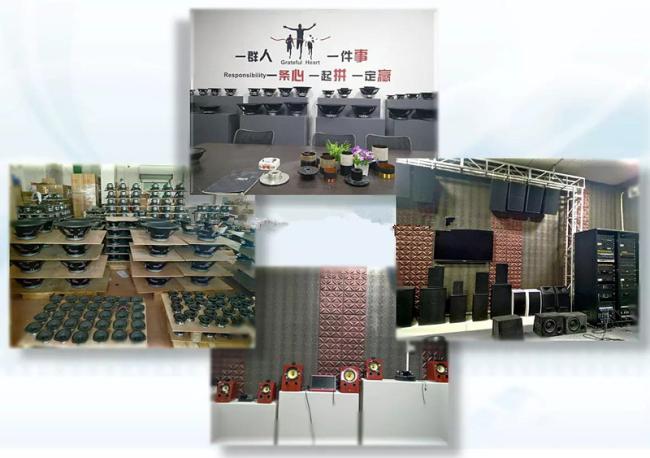

Company Profile

Since our establishment in 2009, we have been committed to manufacturing high-quality audio products, including professional audio speakers, car audio speakers, speakers with cabinets and power amplifiers. Since then, Huiyin Audio Co., Ltd. has had a complete high-quality supply chain, an excellent management team, and the ability to provide our customers with good service and high-quality products at a good price! Instead, the company introduced a series of advanced equipment such as automated production lines, high-efficiency magnetizers, impact testing machines, and temperature testing machines. To maximize, we obtained CE certification in 2012. The enterprise will be gradually developed in 2017.

We are willing to customize the speakers and amplifiers required by customers to suit their market. OEM and ODM orders are welcome.
Committed to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure complete customer satisfaction. When we cooperate with well-known Chinese brands, our products are also exported to customers in North America, South America, Europe, Asia, Africa and Africa and Oceania and other countries and regions. Whether it is selecting the current product from our catalog or seeking the help of an engineer to manufacture other ideal speaker models, please contact our customer service center or send an email to us. We want to establish a long-term business relationship with you.



Packing & Delivery
FAQ

1.Q: Are you a factory ?
   A: Yes, We are professional manufacturer who focus on quality speakers.

2.Q: What's your products range?

   A: Pro audio speaker, car audio speaker and home audio speaker .

3.Q: Can I get some samples?
   A: Yes, we could provide samples and ship samples by DHL, EMS, FedEx or by sea .

4.Q: What's the payment method ?
   A:  T/T , Western union and PayPal.

5.Q: Can you print our logo on the speaker and packing?
   A: Yes , we would like to do it for your OEM orders .

6.Q: Could you build speakers based on customer's design ?
   A: Yes , customized order is welcome .


7.Q: Do you accept small order ?
   A: Yes, small quantity order is accepted because we have most speakers in stock for this kind of trade.

8.Q : How to make a deal with you ?
   A :
   Step 1: Choose the speakers you are interested in based on seller's quotation or catalogs (Buyer)
   Step 2: Tell the quantity you need or your requirements (Buyer)
   Step 3: Quote and calcualte cost to you (Seller)
   Step 4: Pay 30% or 50% as deposit  through T/T,  Western union or PayPal (Buyer)
   Step 5: Produce, QC , pack and ship speakers to you by sea or air ( Seller )
   Step 6: Receive goods  ( Buyer )
