YX120-360 Ridge Cap Roll Forming Machine

No	Specification of the material
1	Suitable Material	Colored Steel plate, Galvanized steel up 235Mpa
2	Width of the raw material	460mm
3	Thickness	0.4-0.6mm

A. Profile drawing

B. Machine Detailed Parameters

1	Machine structure	Guide pillar structure
2	Total power	Motor power-4kw Hydraulic power-5.5kw
3	Roller stations	7stations + 4 station of side roller (according the final design)
4	Productivity	0-15m/min
5	Drive system	By 1.0 inch single chain
6	Diameter of shaft	￠65mm solid shaft
7	Voltage	380V 50Hz 3phases (Customized)
8	Container need	40GP container

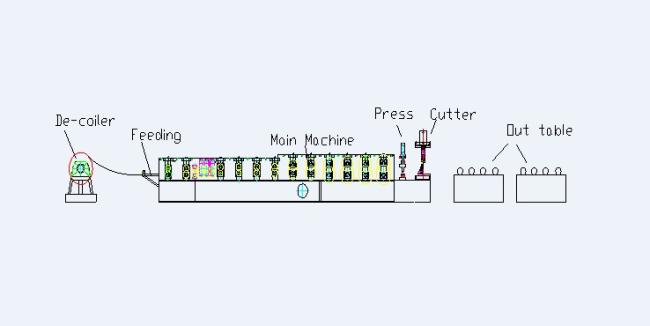

C. The Chart of Process Flow

Manual Uncoiler—Feeding—Roll Forming—Pressing—Cutting—Out table

D. Specification of Components

No		Technical Specification & Remark
1	Manual Uncoiler	Width of feeding: 350mm Capability: 3 Ton Bound of expand &fight: 380mm—520mm Mode of expand &fight: inner expand &fight by manual Way of feeding: manual Quantity: 1
2	Main Roll Forming Machine	Roller material:ASTM1045 chrome plated surface with chrome Shaft diameter: ￠56mm material: SAE1045 with tempering To avoid accidents, the driven parts of the machine will have the cover
3	Machine structure:	Main frame by 350H beam welding Machine structure: guide pillar
4	Hydraulic pressing & cutting system	Cutting & pressing after forming: Cut the sheet after roll forming to required length Uses two hydraulic cylinders for operation. Material of blade/pressing mould:Cr12, 58-62 HRC hardness Power by hydraulic,5.5KW Working pressure: 12-16Mpa adjustable Length measuring: Automatic encoder length measuring Tolerance of length: +/- 1.5mm for each piece end product
5	Hydraulic System	Hydraulic power: 5.5kw Working pressure: 12-16Mpa adjustable Solenoid valve: 2 groups Hydraulic oil: 46# hydraulic oil Quantity :1
6	Computer Control Cabinet	Programmable setting of profile length and quantity 5 groups datas can be set in one time Operating system language: English and Chinese Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. Control panel: Button-type switch and touch screen Unit of length: millimeter PLC brand: Panasonic
7	Out table	Jointed by steel tube One out table with three support roller Quantity: 3units
8	Spare Parts	Bearing: 2 pieces. Limit switch: 2 pieces Relay: 2 pieces. Oil tube: 1 pieces. Screws and nuts: some. Chain: 1 piece Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools
