Round Square Aluminum Downspout Roll Forming Machine Gutter 7.5kw

Round and Square Downspout Roll Forming Making Machine

color steel sheet roll forming machine Producing process:

Material supporting frame→Molding core→Hydraulic system→Automatic control system→Automatic shearing maechanism→Roll forming receiving tables

Machine components

Technical parameters

Profile Drawing

Working flow

Decoiler—Feeding—Main Roll forming—Hydraulic Cutting—Output table

Machine Components

1. Manual decoiler

1). Coil weight: max .3 tons

2). Decoiler: passive uncoiling, manual expansion

3). Expansion range:Φ480-520mm

4). Coil OD: max,1500mm

2. Feeding guide

1). Stand: qualified welded profile steel

2). Guide feeding stand: side hand wheel type

3. Maim Roll former

1). Roll former type: wallboard type and chain drive

2). Forming station: about 18 stations(depend on the actual drawing)

3). roller material: 45# steel chrome coated polishing treatment

4). Roller shaft material 45#steel, shaft diameter: Φ75mm

5). Manual screw adjusts the gap between up and down rollers to suit plate with different thickness

6). Spread width of rolling material: based on the actual width of the test plate

7). Roll former mould: 1set

8). Length tolerance ≤±1.5mm

4. Hydraulic cut off

1). Cutting type: hydraulic cut off

2). Blade material: Cr12mov quenching treatment

3). Cut-off power provided by hydraulic station

5. Bending device

1). The device can bend the downspout pipe into the required arc shape, can bend up and down or left and right. Manual change bending mould in order to change direction.

2). Bending mould material: Cr12 quenching treatment

3). Power provided by hydraulic station

6,Necking device

1). The device can reduce the downspout port and facilitate lapping.

2). Necking mould material: Cr12 quenching treatment

3). Power provided by hydraulic station

7. Exit rack: 2 sets

7. Hydraulic station

1). Hydraulic system power: 11KW

2) . Solenoid Valve of Hydraulic System: Beijing Huade (24V Safety Voltage)

3) . Hydraulic system oil pump: plunger pump

4) . Cooling mod: air cooling

8. Electric control system

1). Inverter:Yaskawa

2). PLC:Panasonic

3). Touch screen:MCGS

4). Encoder: Omron

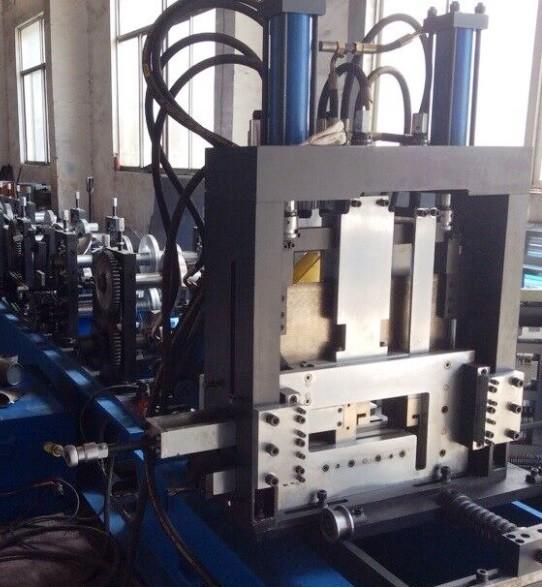

​Picture for reference
