Smart 48V LiFePO4 Battery
48v 10kwh 200mah Ess Cabinet/Rack solar lithium battery pack for home energy storage
Product Name : HOME SOLAR ENERGY STORAGE
Product Model: CSF-5KWh-A1
48v 10kwh Ess Cabinet/Rack Commercial Energy Storage Systems,5Kwh Smart BMS Home Battery Energy Storage System
Product Introduction:
- The IFR32700 type cylindrical LiFeP04 single cell has the advantages of small size, light weight, environmental protection,
- High safety, long life and other advantages.
- It is widely used in various battery combinations such as automotive batteries, start-up power supplies, energy storage, etc.
48v 5k
wh 10kwh 15kwh 20kwh 100mah Ess Cabinet/Rack Solar Home Energy Storage Lithium Battery
Features:
--LiFePO4 Technology
--Longest Lifetime
--Highest Safety and Flexibility
--Modular Design
--Build-in Smart BMS
--Easy Installation
--Simple Connectors
--Widest Compatibility
--Wall-mounted and Cabinet/
--Rack Optional
Product Introduction:
- LiFePO4 batteries are one of the most durable
and reliable energy sources on the market. - Huaxing Energy is a company with
Integration of all technologies needed
For Energy Storage System (ESS)
Including cathode material, lithium cell,
BMS and system integration. - The LiFePO4 Lithium Ion Batteries 51.2V
Series are designed for solar Residential
Energy storage with low cost, high quality,
Excellent performance.

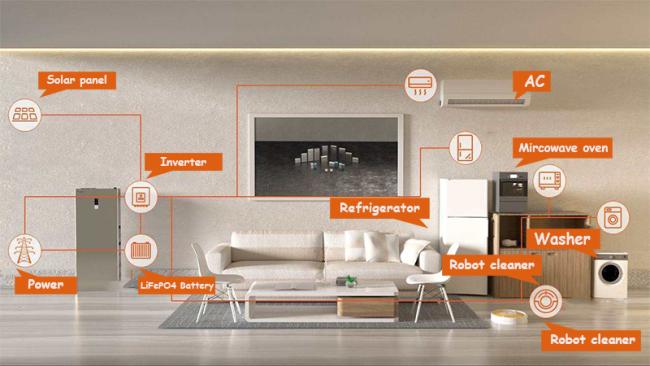

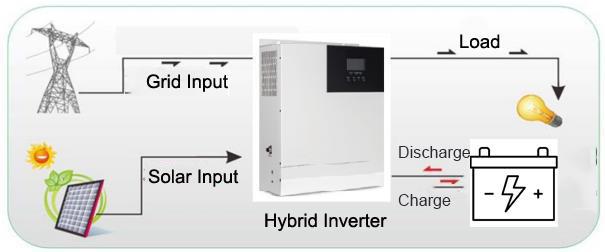

RESIDENTIAL SOLAR ENERGY STORAGE SOLUTION

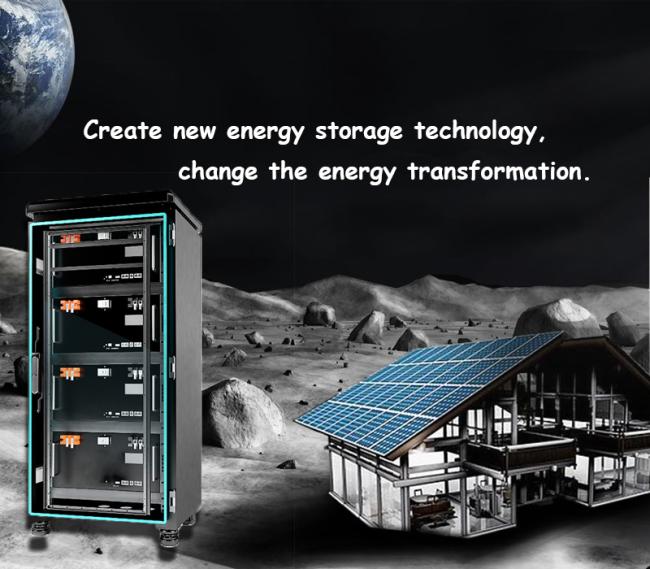

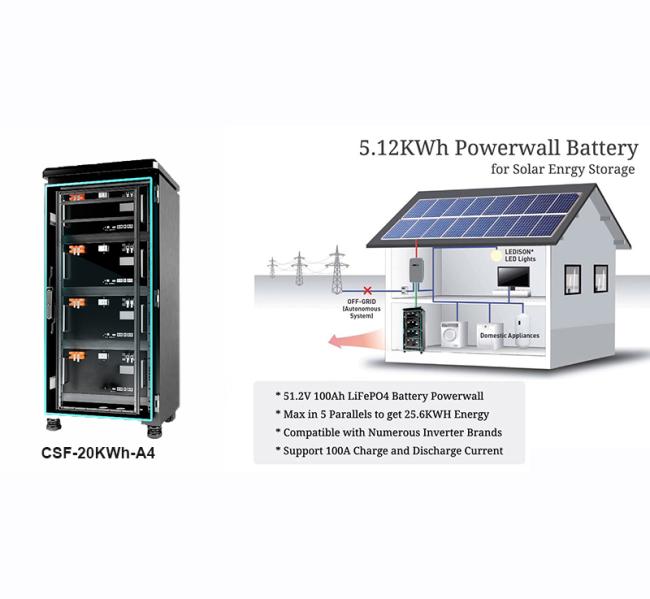

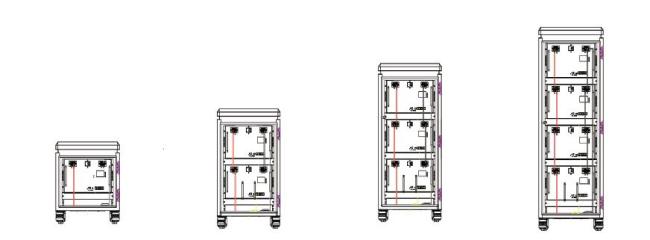

Cabinet/Rack Energy Storage Solution
| Product Model | CSF-5KWh-A1 | CSF-10KWh-A2 | CSF-15KWh-A3 | CSF-20KWh-A4 |
| Nominal Energy | 5KWh | 10KWh | 15KWh | 20KWh |
| Battery Type | LiFePO4(LFP) | |||
| Cell Model | Cylindrical 32700 6.0Ah | |||
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Design Capacity | 100Ah | 200Ah | 300Ah | 400Ah |
| Design Years | 15 | 15 | 15 | 15 |
| Dimensions(L*W*H) | 420*482*222mm | 660*717*522mm | 660*983*522mm | 660*1250*522mm |
| Weight | 58.5Kg | 117.0Kg | 175.5Kg | 234.0Kg |
| Protection Class | IP55 | IP55 | IP55 | IP55 |
| Technical Parameter | ||||
| Cycle Life | ≥6000 80%DOD | ≥6000 80%DOD | ≥6000 80%DOD | ≥6000 80%DOD |
| Operation Temperature | Charge: 0~60℃, Discharge: -20~60℃, Storage: 0~45℃(less than 12 months) | |||
| Operating Voltage Range | 40.0V-58.4V | 40.0V-58.4V | 40.0V-58.4V | 40.0V-58.4V |
| Charge Voltage | DC 58.4V | DC 58.4V | DC 58.4V | DC 58.4V |
|
Charge/Discharge Current |
100A, separate Port |
100A, separate Port |
100A, separate Port |
100A, separate Port |
| BMS Parameter | ||||
| Communication Method | CAN/RS485/RS232 | CAN/RS485/RS232 | CAN/RS485/RS232 | CAN/RS485/RS232 |
| Limiting | 10A | 10A | 10A | 10A |

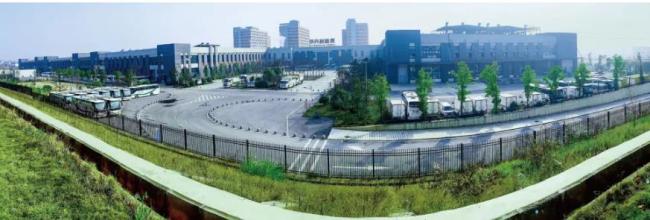

Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion
Battery company, integrating R&D, manufacturing and sales, providing comprehensive solutions for any application.
-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS

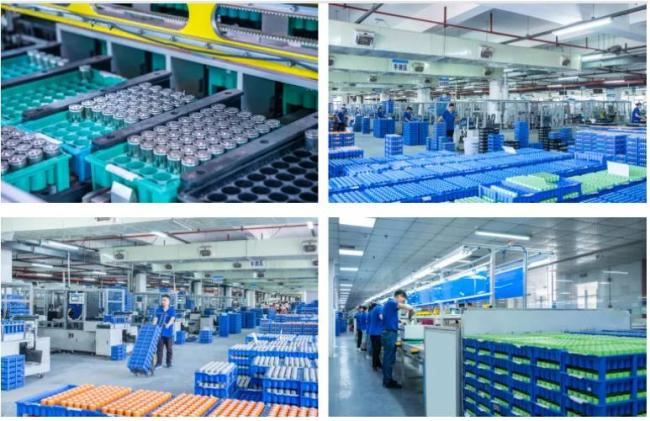

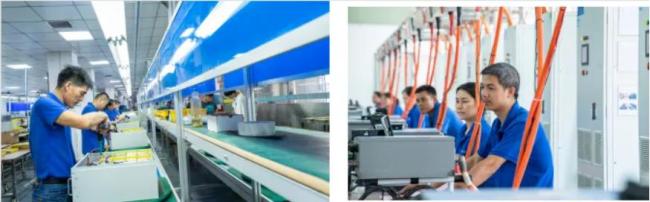

Our production Lines:
Our production Lines:
HUAXING LIFEPO4 BATTERY PACK ROOMS:
