Case Wheel Loader 1542881C1 Seal Kits 721E 621B 821F Lift Cylinder Replacement Service Kit
Price:
Negotiation
MOQ:
100 PCS
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Case Wheel Loader 1542881C1 Seal Kits 721E 621B 821F Lift Cylinder Replacement Service Kit
| Product Name | Case Lift Cylinder Replacement Service Kit |
| Part Number | 1542881C1 |
| Model | CASE 721C, 621E, 721E, 621B, 621D, 821E, 721B, 621F, 721D, 821F, 621C, 721F |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Loader Lift |

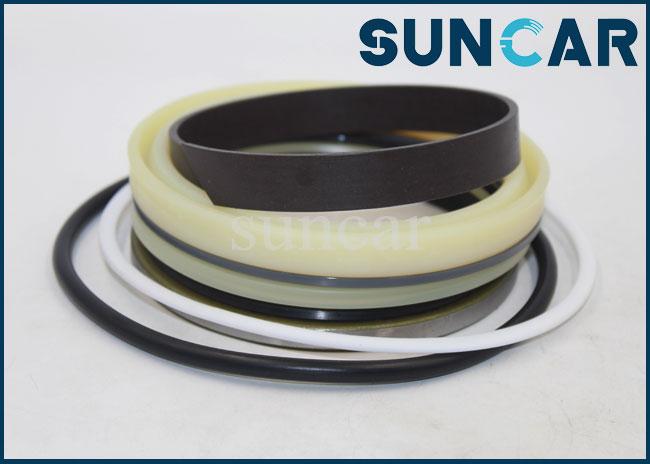

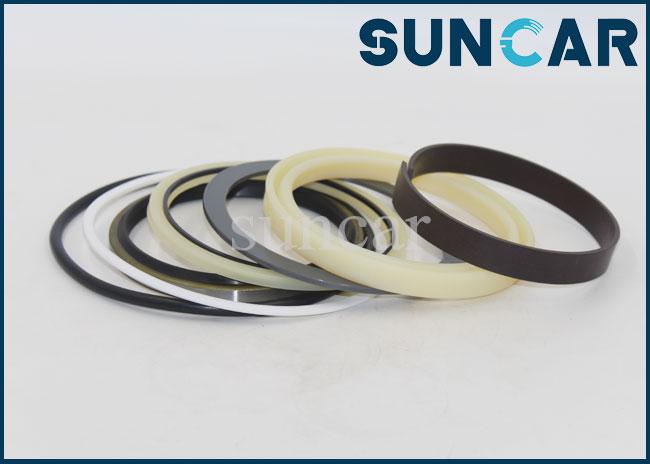

Product Show:
Other Products We Can Offer You:
Oil Seal
O-Ring
Loader Seal Kit
Floating Seal
Hydraulic Breaker Seal Kit
Excavator Hydraulic Parts
Control Valve Seal Kit
Swing Motor Seal Kit
Crankshaft Rear Seal
Crankshaft Front Seal
Track Adjuster Seal Kit
Center Joint Seal Kit
(Main) Control Valve Seal Kit
Blade Lift/Tilt/Steering Cylinder Kit
Seal ClassifiC.A.Tion:
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| . . | 1343596C1 | [1] | CYLINDER ASSY |
| . . | 1343595C1 | [1] | CYLINDER ASSY |
| 1 | 1343597C1 | [1] | TUBE |
| 2 | L127015 | [1] | BUSHING |
| 3 | D95148 | [2] | WIPER SEAL |
| 4 | 28-944 | [9] | BOLT |
| 5 | G110688 | [9] | WASHER |
| . . | G110365 | [1] | CYLINDER END CAP |
| 6 | NSS | [1] | NOT SOLD SEPARAT |
| 7 | D95148 | [1] | WIPER SEAL |
| 8 | G109054 | [1] | SEAL |
| 9 | G109015 | [1] | SEAL |
| 10 | G102429 | [1] | BUSHING |
| 11 | G107970 | [1] | BACK-UP RING |
| 12 | 238-5247 | [1] | O-RING |
| 13 | 1343565C1 | [1] | PISTON ROD |
| 14 | G32122 | [2] | BACK-UP RING |
| 15 | 238-5234 | [1] | O-RING |
| 16 | G110368 | [1] | PISTON |
| 17 | 1986753C1 | [1] | SEAL,Locking |
| 18 | G102092 | [1] | RING,Square |
| 19 | G102090 | [1] | RING |
| 20 | G106602 | [1] | LOCK PIN |
| 21 | G110333 | [1] | CIRCLIP |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 22 | G110366 | [1] | CYLINDER END CAP |
| 23 | D95148 | [1] | WIPER SEAL |
| . . | 1542881C1 | [1] | SEAL KIT |
| 24 | NSS | [1] | NOT SOLD SEPARAT |
| 25 | NSS | [1] | NOT SOLD SEPARAT |
| 27 | G102429 | [1] | BUSHING |
| 28 | G107970 | [1] | BACK-UP RING |
| 29 | 238-5247 | [1] | O-RING |
| . . | 1543305C1 | [1] | SEAL KIT |
