China 15m/S Aerospace Industrial Grade Drone For Aerial Emergency Surveillance Patrol for sale

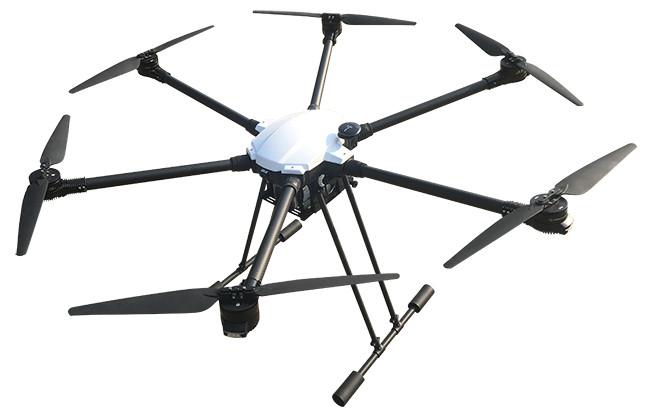

15m/S Aerospace Industrial Grade Drone For Aerial Emergency Surveillance Patrol

Name: 15m/S Aerospace Industrial Grade Drone For Aerial Emergency Surveillance Patrol
Brand: NEW LANDLE TECHNOLOGY CO.,LTD

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 15~25 days

Brand: NLD

Product Description

Industrial Grade Drone for Aerial Emergency Surveillance Patrol

Quick Detail

Motor wheelbase: 1200mm
HD Camera: 1080P
Payload: 0~5kg
Wind resistance: 6
Working time: 30~50min
Image transmission distance: 10~15km
Horizontal speed: 0～15m/s
Max takeoff weight: 25kg

Chassis of Drone

Fully waterproof fuselage: The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright white or black coating, with beautiful shape and eye-catching color.
The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage.

Suspension components

NGC-C4K: 4K HD optical zoom gimbal Lightweight Gimbal weight 286g High resolution, zoom: 12 million pixels, up to 4K recording; 14 times zoom (3.5 times optical * 4 times digital) High stability Jitter Angle: ±0.01° One-key to center: Double-click the target, center zoom function GPS information record: Superimpose GPS information display and save to subtitle file Available SDK: Sky data interface and ground station SDK is available Object Tracking
General Parameter
Product	NGC-C4K: 4K HD optical zoom gimbal
Working voltage	12V-25V
Power	6W
Weight	275g
Size	9679120mm
Interface Type	Network interface
Control display mode	Windows system PC; Android phone, tablet
Environment parameter
Working environment temp.	-10℃ ~ 60℃
Storage environment temp.	-20℃ ~70℃
Gimbal parameter
Jitter Angle	±0.01°
Installation method	Detachable
Controllable rotation range	Pitch/Tilt: +70°- -110°; Yaw/Pan: ±300°
Structure design scope Roll	Pitch/Tilt: +75°- -100°; Yaw/Pan: ±310°; roll: +90°- -50°
Maximum control speed	Pitch/Tilt: 120°/s; Yaw/Pan: 180°/s
Camera parameter
Sensor	CMOS: 1/2.3″; 12.71 million total pixels; maximum resolution 4152*3062
Lens	3.5x optical zoom lens F 3.85~13.4mm Minimum shooting distance: 1mm~3mm (near focus ~ far focus) Field of view (horizontal): 82~25°
Image storage format	JPEG
Working method	Video, photo
Fog penetration	Electronic fog penetration
Exposure mode	Automatic exposure and manual exposure
Minimum illumination	Color: 0.5Lux/F2.4
2D noise reduction	√
3D noise reduction	√
Shutter speed	1/3- 1/30000s
Exposure	Automatic support
OSD	√
Pointing zoom	√
Pointing zoom range	1~3.5 times optical
Support memory card type	Micro SD card 128G (maximum)
