65L Agriculture Spraying Drone
65L Gasoline Battery Hybrid Agriculture Drone for Spraying 7kw Water Cooling Engine Max Payload 65kgs Take-off 160kgs
Comparison of advantages
| Gasoline Battery Hybrid Power | Pure lithium battery system | |
| Efficiency | Big load means each vehicles can fly more large area, reducing waste of invalid stroke. Fill gasoline and then be dispatched immediately, meet the needs of the high strength out continuously. | Load capacity is small,needs more times to fly, disassemble battery, Battery charging time is long, so requires a lot of rotation battery, continuous work pressure is big, efficiency is low. |
| Cost | Needs filling gasoline only, less working, so low cost. | Need large generator to recharge the battery, also need gasoline. Battery limitsat charge life times, must be replaced on a regular basis, high cost. |
Performance parameter
| NLA-GB16 | NLA-GB20 | NLA-GB50 | NLA-GB65 | |
| Rotor | 4 | 6 | 6 | 6 |
| Pesticide tank capacity | 16L | 20L | 50L | 65L |
| Max take-off weight | 45kgs | 57kgs | 113kgs | 160kgs |
| Endurance | 15~120minutes | |||
| Power system | 1set 7kw | 1set 7kw | 2sets 7kw | 3sets 7kw |
| Fuel oil | 92 # gasoline+oil blends(40:1) | |||
| Fuel consumption | 6L/h | 6L/h | 12L/h | 18L/h |
| Expanded size | 1400x1400x700mm | 1850x1850x700mm | 2600x2240x1000mm | 3100x2700x1000mm |
| Folded size | 900x800x700mm | 1150x880x700mm | 1150x1300x1000mm | 1700x1400x1000mm |
| Work efficiency | 16.5acre/h | 24.7acre/h | 49.4acre/h | 65.9acre/h |

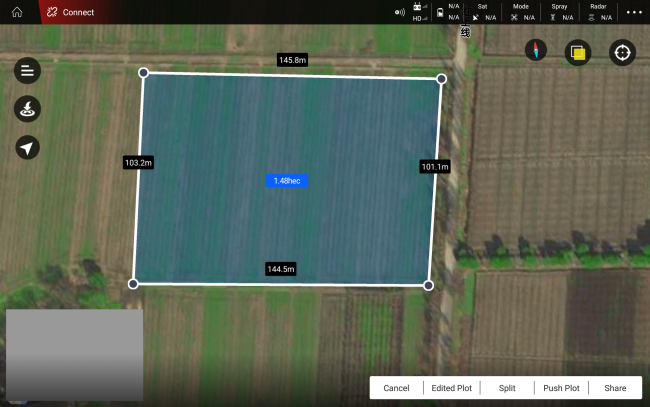

APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.
Gasoline Battery Hybrid Power
|
Output voltage |
DC51.8V (14S LI-OH battery) |
|
Maximum output power |
7KW |
|
Battery |
14S LI-ION 5500MAH 30C |
|
Charging current |
30A |
|
Engine |
Two cylinder two stroke 130CC engine |
|
Engine speed |
4000RMP~7500RPM |
|
Fuel specifications |
92 # gasoline+oil blends(40:1) |
|
Fuel consumption |
7L/H(7KW Run continuously) |
|
Size |
336*280*240MM |
|
Weight |
10KG(Including host, control circuit and water tank, excluding oil tank) |
|
Start launch |
Built-in electric |
|
Control way |
Intelligent frequency conversion |
|
Working temperature |
-10℃~50℃ |
