10L-50L FCC Agriculture Spraying Drone For Spraying Fertilizer And Pesticides Lithium Battery Drive
Agriculture Drone For Spraying Fertilizer and Pesticides Lithium Battery Drive
Quick details:
Flight time: 15~20minutes
Flight controller: 2CPU and 3 IMU
Material: Carbon Fiber and Aluminum
Spray width: 3~5meters
Syray efficiency: 6~8 Ha/hour
Tank: 10~50 L
Work mode: Manual or Workstation
Screen: 5.5" highlight display
Charger: dual channel charger
Spray system: Water pump + Flow meter + Water pipe + Nozzle
Product Description
| Item no. | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
|
Hovering accuracy horizontal |
1.5meters | ||||||
|
Hovering accuracy vertical |
0.5meters | ||||||
| Wind resistance | 4～5 | ||||||
| Motor (KV) | 100 | 110 | 180 | 100 | |||
| Electronic Speed Control (ESC) | 80A | 120A | 80A | 80A | |||
| Motor applicable temperature | -20～50 degree | ||||||
| Foldable propeller | 3090 | 3411 | 2388 | 3090 | |||
| Take-off Capacity | 28kgs | 38kgs | 30kgs | 42kgs | |||
| Flying Time (with payload) | 15~20min | ||||||
| Flying distance | 5kms | ||||||
| Working distance | 2kms | ||||||
| Flying Speed | 0~10m/s | ||||||
| Spray Width | 3~3.5m | 3~3.5m | 3.5~4m | 3.5~4m | 3.5~4m | 3.5~4.5m | 3.5~5m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.5~2.5L/min | 1.5~2.5L/min | 1.5~3L/min |
|
Spray Efficiency (sqm/min) |
1000~2100 | 1000~2100 | 1500~2400 | 1500~2400 | |||
| Expand Size (mm) | 1075x1075x490 | 1100x1100x560 | 1495x1308x500 | 1720x1500x556 | |||
|
Wheelbase (mm) |
1393 | 1400 | 1404 | 1628 | |||
|
Folded Size (mm) |
635x666x490 | 640x670x560 | 945x848x500 | 1073x956x546 | |||
| Battery Quantity |
2pcs |
||||||
| FPV Camera | Optional | ||||||
| Obstacle avoidance radar | Optional | ||||||
| Terrain following radar | Optional | ||||||
| RTK centimeter positioning | Optional | ||||||
Why choose NEWLANDLE drone?
1) Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
b). Low voltage, no signal, return automatically;
c). Fail safe protection;
d). Spray flow control;
e). Intelligent automatic obstacle avoidance;
f). Intelligent terrain following;
g). FPV Camera;
h). RTK centimeter positioning.
2) Stable-Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
Efficient-NLA4 spraying drone: 8-15acres/hour.
NLA6 Agriculture drone: 11-18 acres/hour.
3) Effective
Our each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.
4) Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
5) Easy to maintain & repair
Newlandle have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
6) We supply Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.

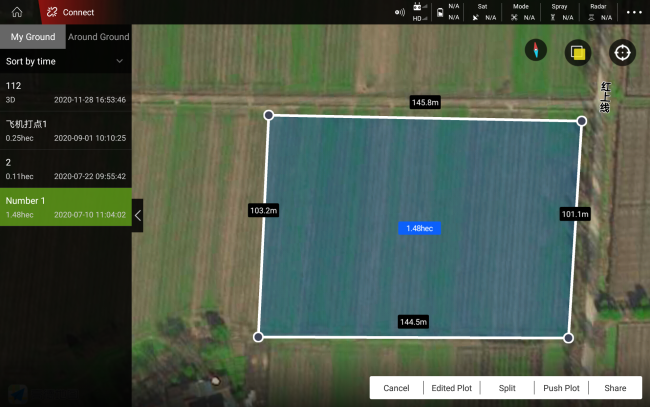

APP Ground Workstation
1. We supply Android system ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Newlandle drone support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back etc.
3. Besides, we supply query job record, flight time, spray width, dose etc.
