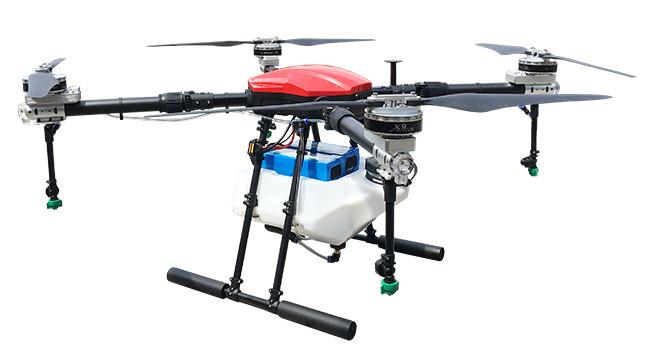

3.5m Agriculture Spraying Drone For Pesticides 15 ~ 20min Flying Time
Agriculture Spraying Drone for Spraying Pesticides 15~20min Flying Time
Product Description
- Model: NLA410
- Rotor: 4
- Material: Carbon Fiber + Aviation Aluminum
- Pesticide Tank: 10L
- Take-off Capacity: 28kg
- Hovering accuracy horizontal: +/- 1.5m
- Hovering accuracy vertical: +/- 0.5m
- Wheelbase: 1362mm
- Motor: 4*100KV
- Electronic Speed Control: 80A
- Motor applicable temperature: -20～50
- Foldable propeller: 3090
- Wind resistance: 4～5
- Flying Time (with payload): 15~20min
- Flight controller: 2CPU + 3 IMU
- Working distance: 2000m
- Flying Speed: 0~10m/s
- Flying distance: 5000m
- Spray Efficiency: 1000~2100sqm/min
- Expand Size: 1780*1780*567mm
- Spray Width: 3~3.5m
- Spray Flow: 1.2~2L/min
- Folded Size: 700*658*567mm
|
Remote controller |
|
|
1080P digital HD image transmission |
NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development. |
|
Industrial equipment level protection |
Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments. |
|
Removable high-performance lithium battery |
The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation |
|
Ultra long transmission distance |
Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10～20km, allowing you to explore a wider space without worrying about the flying distance during flight operations. |
|
Highlight HD display |
The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions. |
Why choose NEWLANDLE sprayer drone?
Stable
Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
Efficient: 11-18 acres/hour.
Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water
Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
b). Low voltage, no signal, return automatically;
c). Fail safe protection;
d). Spray flow control;
e). Intelligent automatic obstacle avoidance;
f). Intelligent terrain following;
g). FPV Camera;
h). RTK centimeter positioning.
Easy to maintain and repair
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
