22L Pesticide Spraying Drone
Pesticide Tank Capacity 22L Automatic Control Agriculture Drone for Sparying
Quick Details:
Pesticide Tank Capacity: 22L (10~50L);
Spraying Width: 3~5Meters;
Spraying Efficiency: 6~8Ha/hour;
Max Remote Control: 10~20km;
Brand: NLD
Product Description
| Model | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
| Rotor | 6 | ||||||
|
Hovering accuracy horizontal |
+/- 1.5m | ||||||
|
Hovering accuracy vertical |
+/- 0.5m | ||||||
| Wind resistance | 4～5 | ||||||
| Motor applicable temperature | -20～50 | ||||||
| Pesticide Tank | 22L | ||||||
| Take-off Capacity | |||||||
| Flying Time (with payload) | 15~20min | ||||||
| Flying distance | 5000m | ||||||
| Working distance | 2000m | ||||||
| Flying Speed | 0~10m/s | ||||||
| Spray Width | 3.5~4m | ||||||
| Spray Flow | 1.5~2.5L/min | ||||||
| Battery / Quantity | 6S 22000mAh / 2pcs | ||||||
| FPV Camera | Optional | ||||||
| Obstacle avoidance radar | Optional | ||||||
| Terrain following radar | Optional | ||||||
| RTK centimeter positioning | Optional |
APP Ground Station
1. On ground station, you can check the FPV Video on the APP;
2. Adjust the parameter on the APP;
3. Google Map could be used;
4. Automatic flying control through the ground startion;
5. Supply 1080P digital HD image transmission;
6. Dispaly screen: available 5.5inch with high brightness high definition;
7. Bettery: 2 kinds of of battery, one for the drone, one for the remote controller.

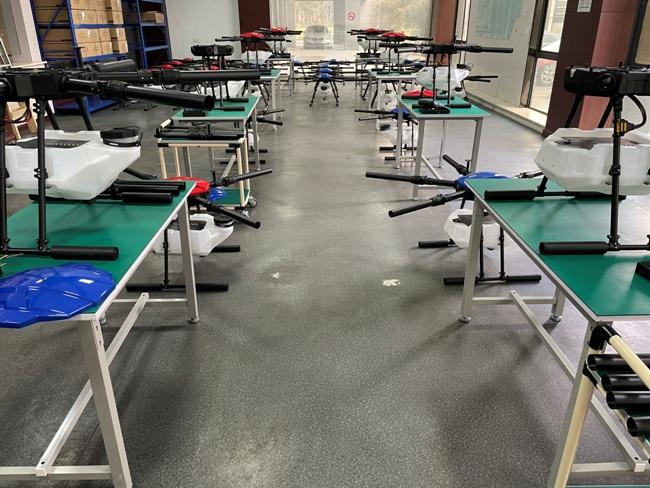

Factory overview
Our NLD Drone factory is located in Yixing city, We can supply all kind of drone for agriculture, Spraying drone, the pesticide tank capacity 10 liters; 16 liters; 22 liters; 30 liters and 50 liters; Fertilizer Drone the tank capacity is 10 liters and 22 liters.
.
