6S 22000mAh 1080P 16L Pesticide Drone Sprayer With FPV Camera
Price:
Negotibal
MOQ:
1sets
Delivery Time:
15~30days
Brand:
NLD
Product Description
16L Agriculutre Drone for Spraying Pesticides 6 Rotors with FPV Camera Image transmission
Quick Details:
1. One key take off and land;
2. Autonomous fly with way points controlled by APP;
3. Low voltage, no signal, return automatically;
4. Fail safe protection;
5. Intelligent automatic obstacle avoidance;
6. Intelligent terrain following
7. FPV camera
Specification:
| Model | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | |||||
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | |||||
| Wind resistance | 4～5 | 4～5 | |||||
| Motor | 6*180KV | 6*100KV | |||||
| Electronic Speed Control | 80A | 80A | |||||
| Motor applicable temperature | -20～50 | -20～50 | |||||
| Foldable propeller | 2388 | 3090 | |||||
| Pesticide Tank | 10L | 16L | |||||
| Take-off Capacity | 30kg | 42kg | |||||
| Flying Time (with payload) | 15~20min | 15~20min | |||||
| Flying distance | 5000m | 5000m | |||||
| Working distance | 2000m | 2000m | |||||
| Flying Speed | 0~10m/s | 0~10m/s | |||||
| Spray Width | 3.5~4m | 3.5~4m | |||||
| Spray Flow | 1.2~2L/min | 1.2~2L/min | |||||
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | |||||
| Expand Size | 1992*1992*562mm | 2428*2428*600mm | |||||
| Wheelbase | 1407mm | 1648mm | |||||
| Folded Size | 945*848*562mm | 1102*979*600mm | |||||
| Battery / Quantity | 6S/16000mAh / 2pcs | 6S 22000mAh / 2pcs | |||||
| FPV Camera | Optional | Optional | |||||
| Obstacle avoidance radar | Optional | Optional | |||||
| Terrain following radar | Optional | Optional | |||||
| RTK centimeter positioning | Optional | Optional |

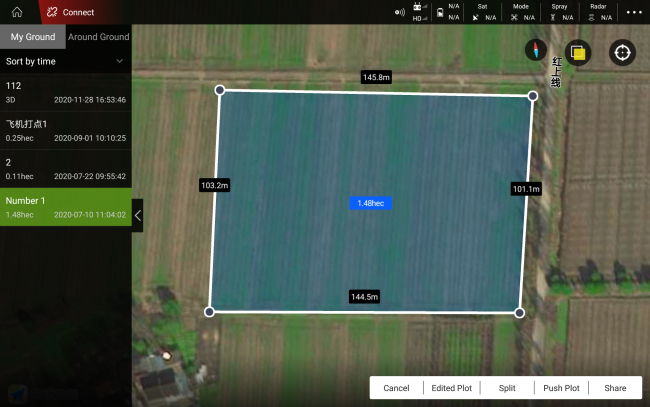

Ground workstation
1. Android System with Ground workstation;
2. Control and adjust drone's flying parameter;
3. Google map;
4. FPV camera video

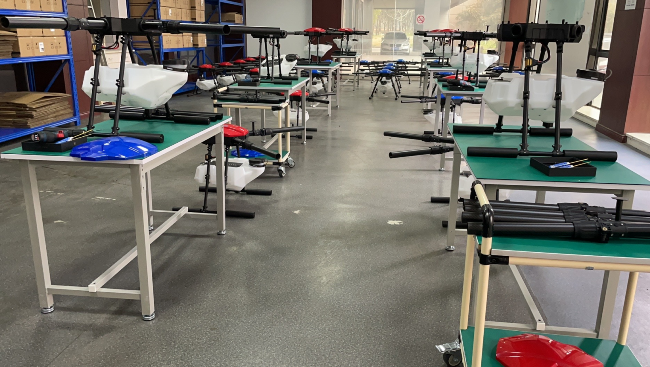

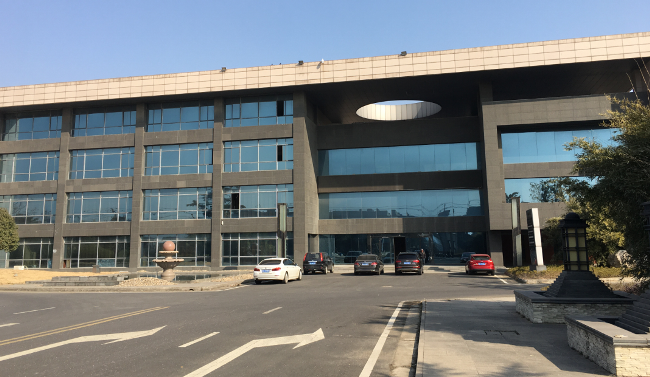

Factory overview
