ISO9001 Sprayer Drone For Farming
NLA-416 4 Rotors Propellers Takeoff Capacity 38kgs Agriculture Spraying Drone Payload 16kgs Wind Resistance Level 5
Quick details:
1. 4 Propellers Foldable
2. Full set ready to fly
3. Pesticide tank 16L
4. Remote Controller with display
5. Battery 2 pcs
Description:
| Model | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
| Pesticide Tank | 10L | 16L | 10L | 16L | 22L | 30L | 50L |
Hovering accuracy | +/- 0.5m | ||||||
Hovering accuracy | +/- 1.5m | ||||||
| Motor applicable temperature | -20～50 | ||||||
| Wind resistance | 4～5 | ||||||
| Take-off Capacity | 38kg | 42kg | |||||
| Motor | 4*110KV | 6*100KV | |||||
| Electronic Speed Control | 120A | 80A | |||||
| Foldable propeller | 3411 | 3090 | |||||
| Flying Speed | 0~10m/s | 0~10m/s | |||||
| Flying Time (with payload) | 15~20min | 15~20min | |||||
| Flying distance | 5000m | 5000m | |||||
| Working distance | 2000m | 2000m | |||||
| Spray Flow | 1.2~2L/min | 1.2~2L/min | |||||
| Spray Width | 3~3.5m | 3.5~4m | |||||
| Spray Efficiency | 1000~2100sqm/min | 1500~2400sqm/min | |||||
| Wheelbase | 1416mm | 1648mm | |||||
| Expand Size | 1848*1848*628mm | 2428*2428*600mm | |||||
| Folded Size | 648*671*628mm | 1102*979*600mm | |||||
| Battery | 6S-22000mAh- 2pcs | 6S-22000mAh- 2pcs | |||||
| FPV Camera | Optional | Optional | |||||
| Obstacle avoidance radar | |||||||
| Terrain following radar | |||||||
| RTK centimeter positioning | |||||||

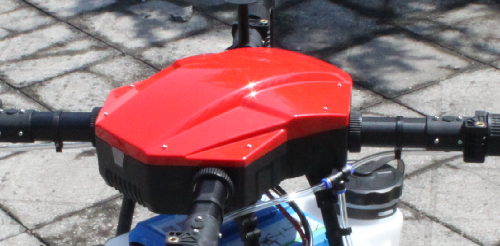

Chassis of Drone
Full Waterproof fuselage. The fuselage adopts the integrated waterproof design, supports washing (Excluding motors and battery parts), and the shell surface adopts the star-bright red coating, with beautiful shape and eye-catching color.
Folding part. The unique L-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling, and all propeller are foldable too.

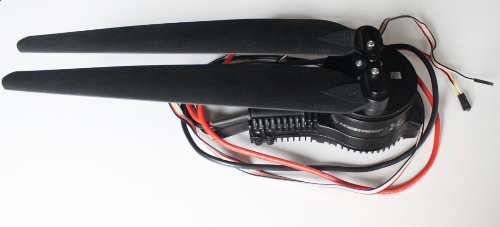

Highlight the LED display; High lift, high efficiency propeller
Modular design, easy maintenance; Sturdy, reliable and impact resistant
The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
Super protection, easy to deal with the harsh environment of plant protection
Intelligent multiple redundancy protection, running data real-time output
support system upgrade
