Remote Control 10L ISO9001 Drone To Spray Pesticide 4 Rotors
10L Pesticide Spraying Done 4 Rotors Remote Control Ground Workstation Automatic Flight & Work
Quick details:
Spray system: Water pump + flow meter + water pipe + nozzle;
Remote controller: Remote control + digital transmission 5.5” screen + Android + ground workstation;
Battery charger: Fast dual channel charger;
Hovering accuracy horizontal: +/- 1.5m;
Hovering accuracy vertical: +/- 0.5m
Specification:
| Model | NLA-410 | NLA-416 | NLA-610 | NLA-616 | NLA-622 | NLA-630 | NLA-650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
| Pesticide Tank | 10L | 16L | |||||
| Take-off Capacity | 28kg | 38kg | |||||
| Wind resistance | 4～5 | 4～5 | 4～5 | 4～5 | 4～5 | 4～5 | 4～5 |
| Flying Time (payload) | 15~20min | 15~20min | |||||
| ESC | 80A | 120A | |||||
| Motor KV | 4*100 | 4*110 | |||||
| Foldable propeller | 3090 | 3411 | |||||
| Motor applicable temperature | -20～50 | -20～50 | |||||
| Flying Speed m/s | 0~10 | 0~10 | |||||
| Spray Width m | 3~3.5 | 3~3.5 | |||||
| Spray Flow L/min | 1.2~2 | 1.2~2 | |||||
| Flying distance | 5000m | 5000m | |||||
| Working distance | 2000m | 2000m | |||||
| Expand Size mm | 1780*1780*567 | 1848*1848*628 | |||||
| Wheelbase mm | 1362 | 1416 | |||||
| Folded Size mm | 700*658*567 | 648*671*628 | |||||
| Battery / Quantity | 6S/16000*2 | 6S/22000*2 | |||||
FPV Camera | Optional | Optional | |||||

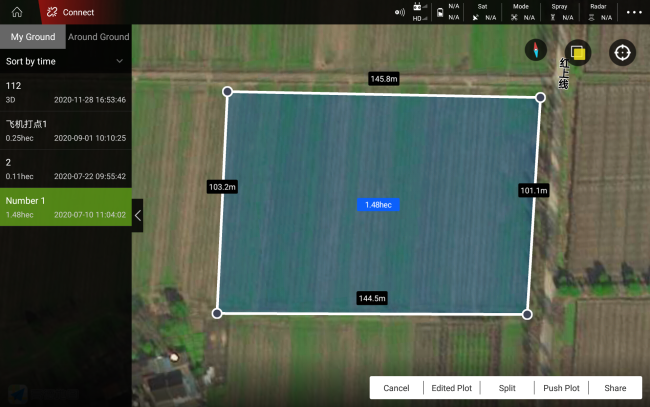

Display ground workstation
1. 5.5" display with android system;
2. High brightness, high definition;
3. With google map, and automatic flight system;
4. Automaci work plan;
5. Job record, flight time, spray width, dose etc.
6. Long distance image transmission system 10~20km.

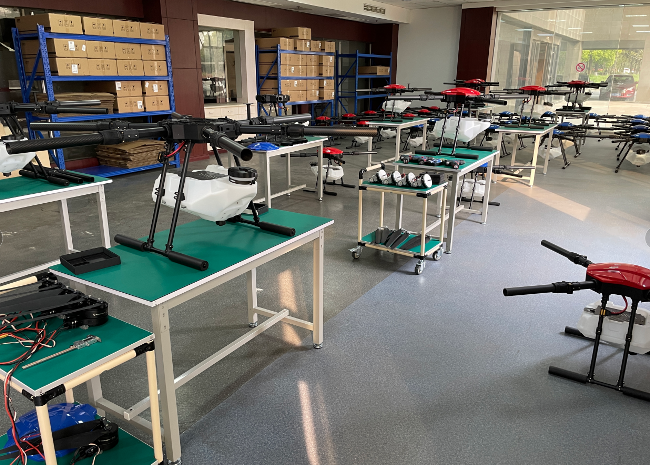

Workshop
