20L 4 Rotors Waterproof Agriculture Spraying Drone With FPV Camera
4 Rotors 20L Sprayer Drone For Spraying Pesticide Herbicide With FPV Camera Automatic Flight
Quick details:
Waterproof: The whole body and frame (except for the motor and battery) is waterproof;
Dust-proof, can be washed directly with water;
4 Rotors with 8 spray nozzles;
Foldable frame and foldable propeller.
Specification:
| No. | Description | NLB420 | NLB620 | NLB626 | NLB630 |
| 1 | Aircraft Frame | 4 rotors | 6 rotors | 6 rotors | 6 rotors |
| 2 | Flight Controller | √ | √ | √ | √ |
| 3 | GPS Dot Device | √ | √ | √ | √ |
| 7 | Pesticide Tank | 20L | 20L | 26L | 30L |
| 8 | Spray System | Water pump + flow meter + water pipe + nozzle | |||
| 9 | Remote Controller | Remote control + digital transmission 5.5” screen + Android + ground workstation | |||
| 10 | Charger | Dual channel charger | |||
| 11 | Battery | 14S 22000mAh | 14S 22000mAh | 14S 25000mAh | 14S 28000mAh |
| 12 | Aluminum Case | √ | √ | √ | √ |
| Quick Details | |||||
| Flight controller: | 2CPU + 3 IMU | ||||
| Material: | Carbon Aluminum | ||||
| Flight time: | 15~20minutes | ||||
| Spray width: | 3~5m | ||||
| Spray efficiency: | 11~18 Ha/hour | ||||
| Lead time: | 15days | ||||
| Tank: | 20/26/30L | ||||
| Work mode: | Manual / Workstation | ||||
| Model | NLB420 | NLB620 | NLB626 | NLB630 |
| Rotor | 4 | 6 | 6 | 6 |
| Wheelbase | 2029mm | |||
| Folded Size | 1150*600*700mm | |||
| Battery / Quantity | 14S/22000mAh | |||
| FPV Camera | Optional | |||
| Obstacle avoidance radar | Optional | |||
| Terrain following radar | Optional | |||
| RTK centimeter positioning | Optional |
Remote controller with App Ground workstation
Remote controller with 5.5" high-brightness high-definition screen dispaly with android system, Google map, flying parameter adjustment.
Support dot device, automatic automatic AB working mode, flying height, spray mode, flying speed, terrain following, obstacle avoidance.
Integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.
Ultra long transmission distance
Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10～20km, allowing you to explore a wider space without worrying about the flying distance during flight operations.
Industrial equipment level protection
Unmanned aerial vehicles work in harsh outdoor conditions. it is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.
Highlight HD display
The display can clearly view real-time display information under strong light conditions.
Removable high-performance lithium battery
The lithium battery, low internal resistance, more than 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation

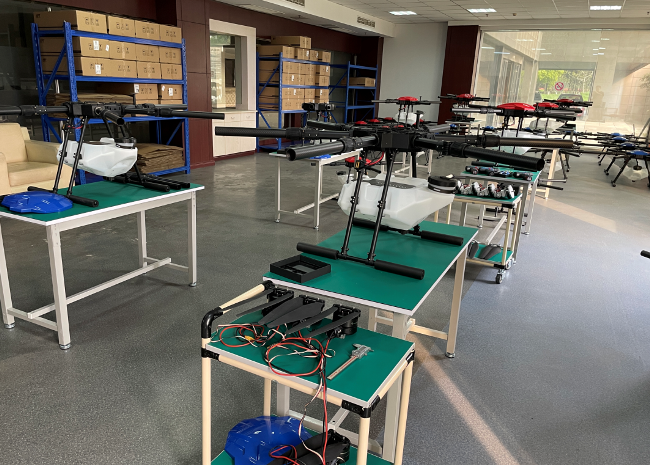

Workshop
