4 Rotors 20 Liters UAV Drones Used For Spraying Pesticides

Price Negotiable
Price: Negotible
MOQ: 1set
Delivery Time: 20days
Brand: NLD
Product Description

4 Rotors 20Liters New Style Pesticide Sprayer UAV Drone For Liquid Spraying with Camera Can Take Photos and Videos



Quick details:

Waterproof: The main body and frame;

Works for agriculture liguid spraying;

Can take photos and videos;

Specification:

No. Description NLB420 NLB620 NLB626 NLB630
1 Aircraft Structure 4 rotors
2 Flight Controller
3 Dot Device
7 Liquid Tank 20L
8 Spray System 1 Water pump + flow meter + water pipe + 8 nozzle
9 Remote Controller Remote control 5.5” screen + Android + ground workstation + digital transmission + image transmission
10 Charger Dual channel charger
11 Battery 14S 22000mAh
12 Aluminum Case
Quick Details
Flight controller: 2CPU with 3 IMU
Material: Carbon Fiber + Aviation Aluminum material
Flight time: Around 20minutes
Spray width: 3~5m
Spray efficiency: 11~18 Ha/hour
Lead time: 15days
Tank: 20/26/30L
Work mode: Manual or Workstation
Model NLB420
Rotor 4

Hovering accuracy

horizontal

+/- 1.5m

Hovering accuracy

vertical

+/- 0.5m
Wind resistance 4~5
Motor 4*100KV
Electronic Speed Control 150A
Motor applicable temperature -20~50
Foldable propeller 3612
Pesticide Tank 20L
Take-off Capacity 42kg
Flying Time (with payload) 15~20min
Flying distance 5000m
Working distance 2000m
Flying Speed 0~10m/s
Spray Width 3.5~4m
Spray Flow 1.2~2L/min
Spray Efficiency 1500~2400sqm/min
Wheelbase 2029mm
Folded Size 1150*600*700mm
Battery / Quantity 14S/22000mAh
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional

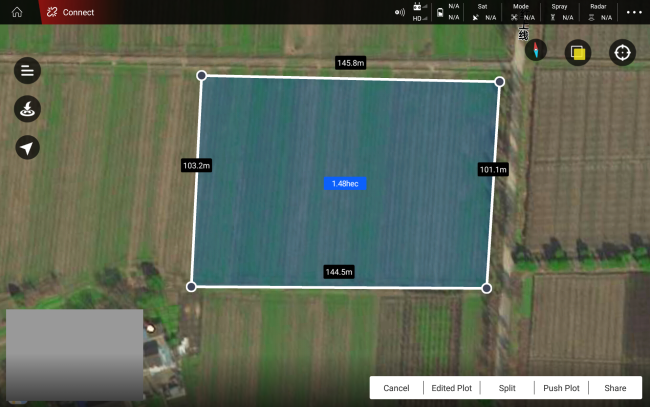

Remote controller with App Ground workstation

1. Remote controller with screen dispaly 5.5" high-brightness high-definition and android system, Google map, flying parameter adjustment.

2. It support automatic automatic AB working mode, dot device, flying height, spray mode, flying speed, terrain following, obstacle avoidance.

3. Integrated digital image transmission system, supports video such as cameras, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function.

4. long transmission distance, long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10km, allowing you to explore a wider space without worrying about the flying distance during flight operations.

5. Industrial equipment level protection, it work in harsh outdoor conditions, protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.

6. The display can clearly view real-time display information under strong light conditions.

7. Removable high-performance lithium battery, the battery, low internal resistance, more than 6 hours long battery life, and stable battery curve provide stable power, and can quickly replace the battery to ensure continuous operation.
