ISO9001 5000m 6S 22000mAh Fertilizer Spraying Drone
Agriculture Fertilizer Drone Feed Tank 22kgs Dissemination of Solid Objects Ready to Fly Full Set
Quick start
1. Spreader Tank: 22L
2. Spread size: 0.5~6mm solid fertilizer or seeds;
3. Spread speed: accurate control;
4. Two feed ports;
Product Description
| No. | Description | NSA422 | NSA610 | NSA622 | |
| 1 | Frame | 4 rotors | 6 rotors | 6 rotors | |
| 2 | Flight Controller | √ | √ | √ | |
| 3 | GPS Dot Device | √ | √ | √ | |
| 4 | Motor | 4*110KV | 6*180KV | 6*100KV | |
| 5 | Electronic Speed Control | 4*120A | 6*80A | 6*80A | |
| 6 | Foldable propeller | 4*3411 | 6*2388 | 6*3090 | |
| 7 | Pesticide Tank | 22L | 10L | 22L | |
| 8 | Spreading System | Motor + door opening + lack of material detection | |||
| 9 | Remote Controller | Digital transmission 5.5” screen + Android + ground workstation | |||
| 10 | Battery Charger | Dual channel | |||
| 11 | Battery | 2*22000mAh | 2*22000mAh | 2*22000mAh | 2*22000mAh |
| 12 | Aluminum Case | √ | √ | √ | |
| Model | NSA422 | NSA610 | NSA622 | |
| Number of Rotor | 4 | 6 | 6 | |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | |
| Wind resistance | 4～5 | 4～5 | 4～5 | |
| Motor | 4*110KV | 6*180KV | 6*100KV | |
| Electronic Speed Control (ESC) | 120A | 80A | 80A | |
| Motor applicable temperature | -20～50℃ | -20～50℃ | -20～50℃ | |
| Paddle | 3411 | 2388 | 3090 | |
| Feed Tank | 22L | 10L | 22L | |
| Take-off Capacity | 38kg | 30kg | 42kg | |
| Flying Time (with payload) | 10~15min | 10~15min | 10~15min | |
| Flying distance | 5000m | 5000m | 5000m | |
| Working distance | 2000m | 2000m | 2000m | |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | |
| Spreading Width | 3~6m | 3~6m | 3~6m | |
| Spread Distance | 2~5m | 2~5m | 2~5m | |
| Solid particles | 0.5~6mm | 0.5~6mm | 0.5~6mm | |
| Expand Size | 1848*1848*628mm | 1992*1992*562mm | 2428*2428*600mm | |
| Wheelbase | 1416mm | 1407mm | 1648mm | |
| Folded Size | 648*671*628mm | 945*848*562mm | 1102*979*600mm | |
| Battery / Quantity | 6S/22000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S 22000mAh / 2pcs | |
| FPV Camera | Optional | Optional | Optional | |
| Obstacle avoidance radar | Optional | Optional | Optional | |
| Terrain following radar | Optional | Optional | Optional | |
| RTK centimeter positioning | Optional | Optional | Optional |

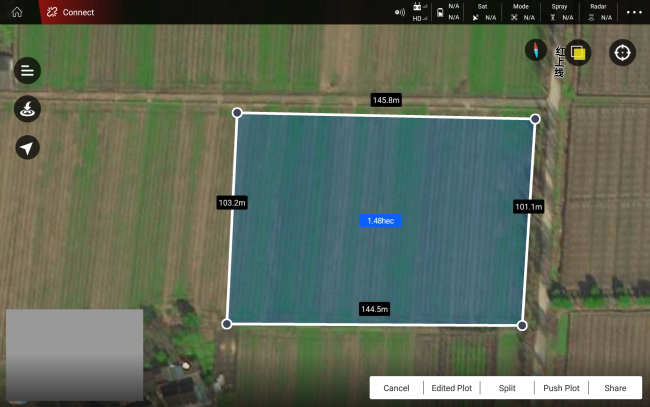

APP Ground Workstation
1. Support 5.5" display on Remote Control and android system, google map, ground workstation;
2. Control and adjust flying parameter, and FPV video;
3. Automatic, semi-automatic AB working mode;
4. Flying height, spray mode, flight line spacing, flying speed control;
5. Supply optional terrain following, automatic obstacle avoidance;
6. Support course adjustment, fail-sail back;
7. Supply job record, flight time, spray width, dose etc.

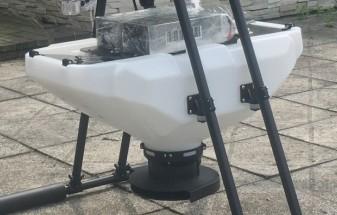

Spreading Tank
22kgs spreader loaded, Adjust the size of the outlet valve and the speed of the spreading turntable, so it can control the discharge volume accurately and the discharge speed. The spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
Ground defense radar
Optional
Obstacle avoidance radar
Optional
RTK certimeter-level precision positioning system
Optional
