2K LCD Screen Display IP53 UAV Parts , FPV Portable Ground Control Station For UAV

Mini Handheld Ground Station 15 Kilometer Image Transmission Dual 1080P FPV 5.5" 2K High Brightness LCD Screen Display

15KM 1080P Image Transmission
The technology comes with a smart ability to adapt its transmission to better frequency bands, which means it always goes to work on the band with least interference. With the standard omni directional antennas, MK15 system’s effective range can reach up to 15 kilometers. With the long-range antennas coming with MK15 enterprise combos, the range can be up to 30 kilometers with full HD image transmission, real-time telemetry, and stable control.

Dual Full HD Low-Latency Video Stream Display

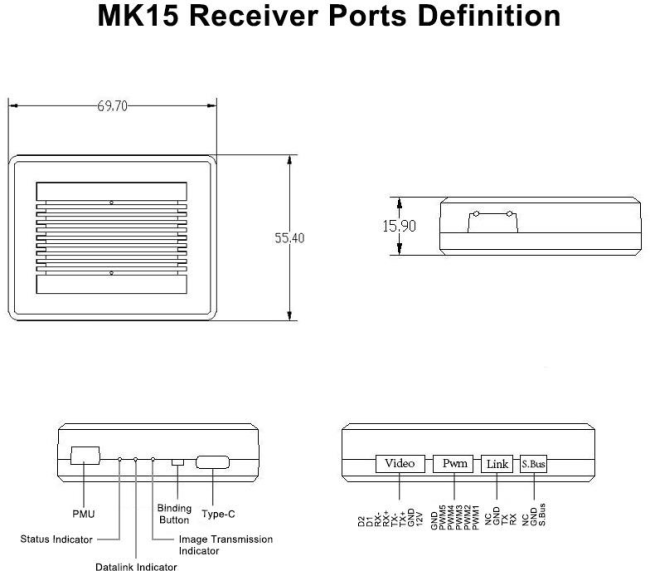

MK15 receiver supports standard RTSP video stream input through its standard ethernet port directly or converted by HDMI module. The stream is up to two-way 1080p video simultaneously, latency low to *180ms. The pre-installed FPV application supports switching display of two video streams between the main screen and the floating window, and the video stream SDK is fully open to developers.

1000 cd/m2 High Brightness, 1920*1080 High-Definition Monitor

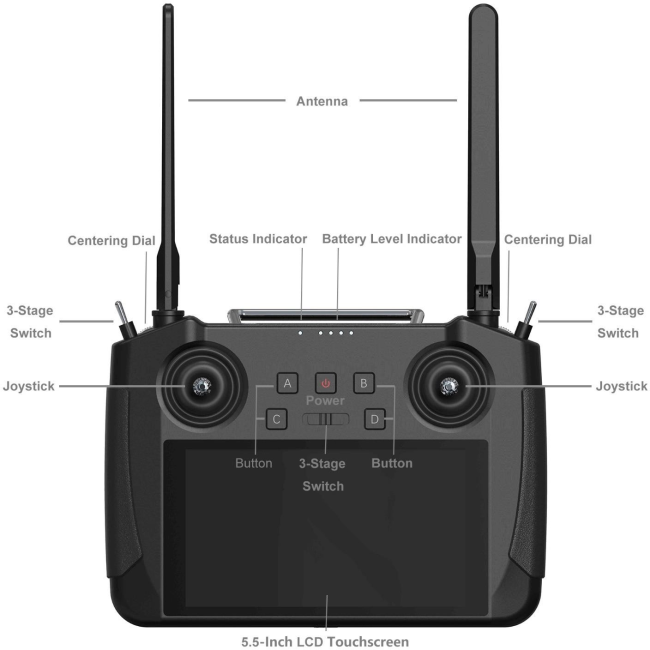

MK15 has a 5.5-inch high-definition and high-brightness LCD screen. Display definition is 1920*1080 pixels. Max brightness is 1000cd/m2, which is almost two times of usual smartphones, crystal clear under direct sunshine.

Specification:
