Single Axis GPS CE Powerline Drone Gimbal Camera For Taking Video And Photo
Price:
Negotible
MOQ:
1set
Delivery Time:
20days
Brand:
NLD
Product Description

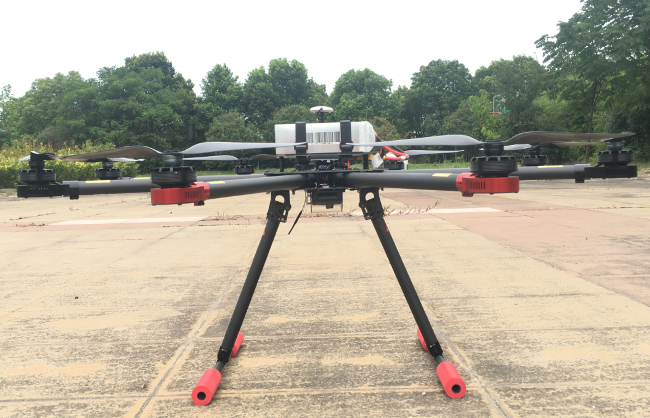

Drone for Power Line for String Pilot Rope Single Axis Gimbal Camera Use for Taking Video and Photo
Specification:
| Modle: NPA-805H | |||
| Gimbal | Single axis | Camera | 720P |
| Fail-Safe | Included | GPS | Included |
| Motor axle distance | 1080mm | Height with support | 450mm |
| Max payload | 8kg | No-load endurance | 25-30min |
| Max take-off weight | 14kg | Load endurance | 12-18min |
| Flying speed | 0~15m/min | Flight mode | Manual control; ATT; GPS |
| Drone empty weight | 4kg | Battery | Tattu 16000mAh 6S Lip |
| Max flight distance | 2~4km | Flight height | 0~1000m |
| Working Temperature | -5℃~50℃ | Diameter of pilot rope | 2~4mm |
| Functions: GPS positioning, full-auto return, semi-auto return, runaway protection, headless mode, heading lock, low-voltage protection alarm, battery power backhaul, national exclusive high beam function, OSD flight data real-time backhaul, etc. | |||
Component
| 1 | Drone DJI NAZA V2 flight control with GPS | 1 set |
| 2 | Professional Dual Channel Battery charger | 1 set |
| 3 | Professional remote controller T10 | 1 set |
| 4 | 16000mAh Tattu lithium battery | 2 pcs |
| 5 | Battery for remote controller | 1 pcs |
| 6 | Battery voltage capacity checker | 1 set |
| 7 | Tool kits | 1 set |
| 8 | Aviation aluminum case | 1 pcs |
| 9 | Spare screws | 1 pack |
| 10 | Backup battery strap | 4 pcs |
| 11 | Spare propeller | 8 pcs |
| 12 | 6.5" Mobile phone as dispaly |
Remote control
| Controller data | |||||||||
| Model | T10 Skydroid | Channels | 10 | ||||||
| Voltage | 4.2V | Current | 100mA | ||||||
| Frequency | 2.400~2.483GHz | Modulation | FHSS | ||||||
| Firmware | APP | Weight | 525g | ||||||
| Dimension | 160*150*50mm | Battery Capacitor | 4000mAh | ||||||
| Duration | 10h | Charge Port | Micro-USB | ||||||
| Receiver Specifications | |||||||||
| Model | RIO | Size | 50*31*12mm | ||||||
| Current | 100mA | Weight | 20g | ||||||
| Voltage | 4.5~5.5V | Channels | 10 | ||||||

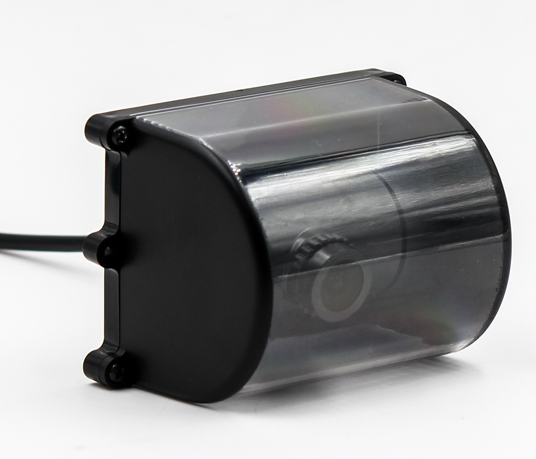

Digital Camera
| General Parameter | |
| Product | Digital camera |
| Working voltage | 5V |
| Working current | 180mA |
| Weight | 67g |
| Size | 71*51*48mm |
| Interface Type | Network interface |
| Control display mode | Windows system PC; Android phone, tablet |
| Environment parameter | |
| Working environment temp. | -10℃ ~ 50℃ |
| Gimbal parameter | |
| Gimbal | Single axis |
| Controllable rotation range | Pitch: +10°~90° |
| Camera parameter | |
| Resolution | 720P |
| Working method | Video, photo |
| Support memory card type | Micro SD card 128G (maximum) |
Notes:
The configuration remote control, battery, charger are brand accessories, better quality and more powerful. Equipped with brand Tattu lithium battery, best quality. If the amount of engineering is large and the drone needs to work for a long time, you can contact the procurement of batteries at any time in the later stage.
More photos

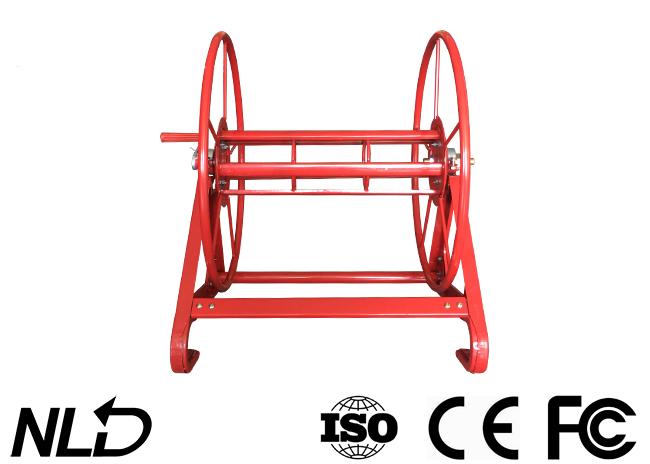

and Take-up Reel
