35 mins 4K FCC 3 axis gimbal Aerial Camera Drones
Camera Drone with 4K Sony Camera GPS GLONASS Dual Module Ensure Smooth and Precise Flight
Important Statement
- This product is not a toy, but a precision device that integrates professional knowledge such as mechanics, electronics, aerodynamics, and high-frequency emission .Accidents can be avoided by correct assembly and debugging. The owner of the product must use a safe way to operate and control; improper operation may cause serious personal injury or property damage.
- This product is suitable for people who have experience in operating model aircraft and are at least 14 years old.
- If user encounter problems with use, operation, maintenance, etc., please contact local dealer or relevant personnel of our company. Our company and the seller are No responsibility for any loss and damage caused by improper work and personal injury,
- This product contains small parts, please keep it out of the reach of children to avoid the risk of ingestion or suffocation.
Specification
1. Aircraft
| Flod size | 170*108*74mm |
| Unfold size | 180*255*74mm |
| Wheelbase | 280mm |
| Weight | 515g |
| Max Ascent Speed |
Clam mode: 2m/s Normal mode: 2m/s Sport mode: 5m/s |
| Max Descent Speed |
Clam mode: 1.5m/s Normal mode: 1.5m/s Sport mode: 2m/s |
| Max Speed |
Clam mode: 5m/s Normal mode: 10m/s Sport mode: 19m/s |
| Max Service Ceiling Above Sea | 5000m |
| Max Fight Time | 35mins |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range |
Vertical: +/-0.5m±0.2m(ultrasonic system, optical flow system works) Horizonal: +/-1.5m±0.3m(ultrasonic system, optical flow system works) |
| Maximum Flight Height | 120m(Maximum 500m(Need to change setting on app)) |
| Operating Temperature Range | 0℃-40℃ |
Optical flow system
Operating Environment: Surface with clear pattern and adequate lighting(lux>15)
Velocity Range: ≤1.5m/s at 6.6 ft (2m) above ground
Altitude Range: 0.2-4.5m
Ultrasonic altitude system
Operating: Except for surface of water or ground of absorbing material(such as thick carpet)
Velocity Range: ≤3m/s
Altitude Range: 0.2-4.5m
3-axis gimbal
Controllable: Pitch: -90°-0°
Stabilization:
Pitch: +30/-120°
Roll: ±35°
Yaw: ±30°
Camera
Sensor: Ambarella A12, SONY CMOS
Image Size: 5120*3840(20MP)
Shooting mode: Single shot
Video Recording Resolution: 3840*2160
Maximum Video Bit: 60Mbps
Supported File Systems: FAT32(<=32GB)/exFAT(>32GB)
Photo: JPEG
Video: MP4
Supported SD Cards: Micro SDTM Max capacity: 128GB, UHS-I Speed Grade 3 rating required
Operating Temperature Range: 0℃-40℃
Battery
Capacity: 3100mAh
Voltage: 11.4V
Battery Type: LiPo 3S
Energy: 35.34Wh
Net Weight: 196g
Max charging power: 35W
Charge time: <5h(with 5V 2A adapter)
Charging Temperature Range: 0℃-40℃

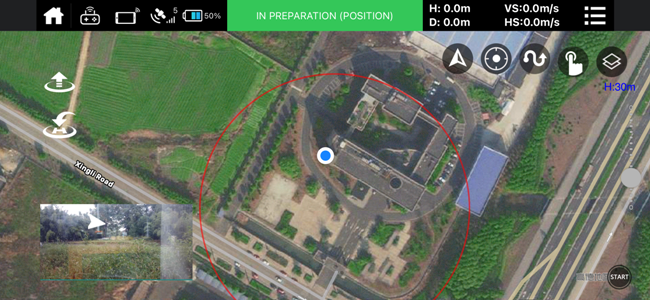

APP
Mobile APP: C-Fly 2
Live View Quality: 720P
Aerial Photography mode: dronie, rocket, circle, helix
Required Operating Systems: Andrio 5.0 above, ISO 9.0 above
FPV Transmission Distance: 5000m
Charger
Input: 5V 2A(recommend)
Output: 4.35V 0.7A*3
Rated Power: 10W
Remote Controller
Operating Frequency: 5.8GHz
Max Transmission Distance: 5000m
Transmitter Power(EIRP):
FCC: ≤23dBm
CE: ≤14dBm
SRRC: ≤20dBm
Operating Current/Voltage: 500mA@3.7V
Capacity: 2600mAh
Battery Capacity(built-in): 3.7V
Battery Type: LiPo 18650 1S
Battery Power: 9.62Wh
Operating Temperature Range: 0℃-40℃
Supported Mobile Device Size: Thickness Supported: 6.5-8.5mm
Charge: USB
Maximum Charge Power: 5W
Charge Time: <3h(with 5V 2A adapter)
