NiCd NiMH Pb LiFe Lilon CE LiPo LiHV Dual Battery Charger
Dual Channel Charger for Battery Charger Support Type NiCd NiMH Pb LiFe Lilon LiPo LiHV
Default Battery Type of Charger and Task Parameters
|
NiCd/NiMH |
Pb |
LiFe |
Lilon |
LiPo |
LiHv |
|
|
Rated Voltage |
1.20V |
2.00V |
3.20V |
3.60V |
3.70V |
3.80V |
|
Full Charge Voltage |
1.40V |
2.46V |
3.65V |
4.10V |
4.20V |
4.35V |
|
Storage Voltage |
Not supported |
Not supported |
3.30V |
3.70V |
3.80V |
3.85V |
|
Discharge Voltage |
1.10V |
1.90V |
2.90V |
3.20V |
3.30V |
3.40V |
|
Pre-charge Voltage |
0.90V |
1.80V |
2.60V |
2.90V |
3.00V |
3.10V |
|
Balance Charge |
Not supported |
Not supported |
Supported |
Supported |
Supported |
Supported |
| Unbalanced Charge | Supported | Supported | Supported | Supported | Supported | Supported |
| Support Cells | 1-16S | 1-12S | 1-6S | 1-6S | 1-6S | 1-6S |
| Max Charge Current | 12.0A | 12.0A | 12.0A | 12.0A | 12.0A | 12.0A |
Please be cautious when selecting the charging parameters for diuerent types of batteries; otherwise, the batteries may be damaged. Incorrect setting can result to fire and/or explosion.
Specification
| Input Voltage: AC 100~240V | Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1~6S) |
| Charge Current: 0.1~12.0A*2 | NiMH/Cd(1~16S) |
| Discharge Current: 0.1~3.0A*2 | Pb(1~12S) |
| Max Charge Power: 200W | Display: 2.4" 320x240 IPS LCD |
| Max Discharge Power: 5W*2 | Operating Temperature: 0~40°C |
| Balance Current: 1A/Cell*2 | Storage Temperature: -20~60°C |

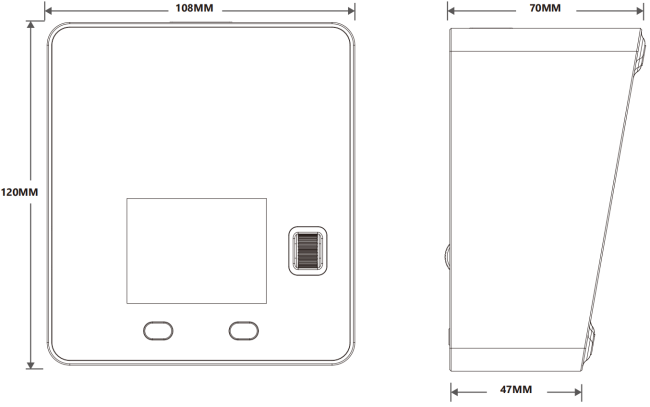

| Balance Cells: 1~6S*2 | Dimensions: 120x108x70mm |
| Weight: 510g |
| 1. AC input | 2. USB port | 3. Update port | 4. Balance port for channel 1 |
| 5. Battery port for channel 1 | 6. Battery port for channel 2 | 7. Balance port for channel 2 | 8. Channel 1 select button |
| 9. Channel 2 select button | 10. 2.4" IPS display | 11. Speed shuttle key |
