Farm 10 L Multi Rotor Agriculture Spraying Drone With Fpv Camera
Price:
Negotiable
MOQ:
1set
Delivery Time:
20 days
Brand:
NLD
Product Description

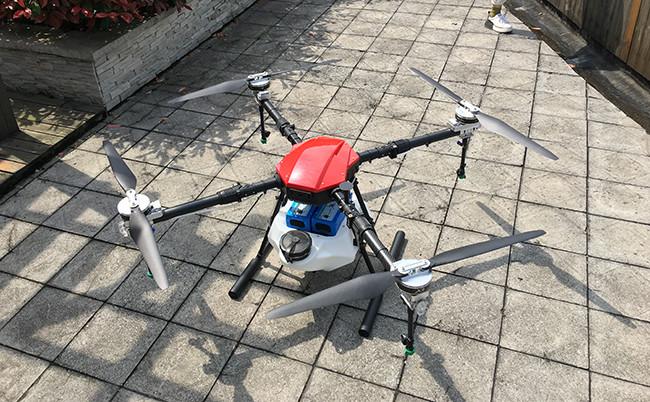

NLA-410 10L Multi-rotor Agriculture Spraying Drone For Farm With FPV Camera
- Model: NLA-410
- Place of Origin: Jiangsu, China
- Year Built: 2021
- Usage: Agricultural Spraying Drone
- Flight Controller: 2 CPU + 3 IMU
- Tank: 10L
- Material: Carbon Fiber + Aviation Aluminum
- Spray efficiency: 6-8 Ha/hour
- Lead Time: 15days
Product Description
| Model | NLA410 | NLA416 | NLA610 | NLA616 |
| Rotor | 4 | 4 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4~5 | 4~5 | 4~5 | 4~5 |
| Motor | 4*100KV | 4*110KV | 6*180KV | 6*100KV |
| Electronic Speed Control | 80A | 120A | 80A | 80A |
| Motor applicable temperature | -20~50 | -20~50 | -20~50 | -20~50 |
| Foldable propeller | 3090 | 3411 | 2388 | 3090 |
| Pesticide Tank | 10L | 16L | 10L | 16L |
| Take-off Capacity | 28kg | 38kg | 30kg | 42kg |
| Flying Time (with payload) | 10~15min | 10~15min | 10~15min | 10~15min |
| Flying distance | 5000m | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3~3.5m | 3~3.5m | 3.5~4m | 3.5~4m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1000~2100sqm/min | 1000~2100sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Expand Size | 1075*1075*490mm | 1100*1100*560mm | 1495*1308*500mm | 1720*1500*556mm |
| Wheelbase | 1393mm | 1400mm | 1404mm | 1628mm |
| Folded Size | 635*666*490mm | 640*670*560mm | 945*848*500mm | 1073*956*546mm |
| Battery / Quantity | 6S/16000mAh / 2pcs | 6S/22000mAh / 2pcs | 6S/16000mAh / 2pcs | 6S 22000mAh / 2pcs |
| FPV Camera | Optional | Optional | Optional | Optional |
| Obstacle avoidance radar | Optional | Optional | Optional | Optional |
| Terrain following radar | Optional | Optional | Optional | Optional |
| RTK centimeter positioning | Optional | Optional | Optional | Optional |
Quick Details:
- Fully waterproof fuselage: The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright blue coating, with beautiful shape and eye-catching color.
- New folding part: The unique C-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.
Integrated power system
- The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
- Super protection, easy to deal with the harsh environment of plant protection
- Intelligent multiple redundancy protection, running data real-time output
- Highlight the LED display
- High lift, high efficiency propeller
- Sturdy, reliable and impact resistant
- Modular design, easy maintenance
- support system upgrade
