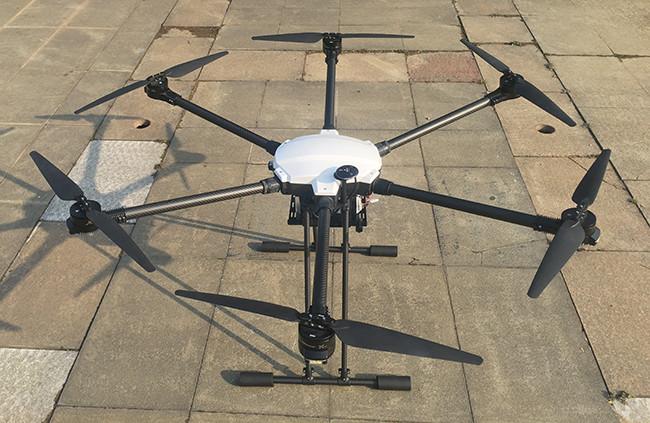

0-5kg Payload Industrial Grade Drone For Aerial Emergency Surveillance Patrol

Industrial Grade Drone 0-5kg Payload For Aerial Emergency Surveillance Patrol

NPA-610 for power line, Flight control 3 redundant accelerometers and gyroscopes, it can work for full construction section, long time flying suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.

• Motor wheelbase: 1200mm
• Working time: 30~50min
• Max takeoff weight: 25kg
• Payload: 0~5kg
• HD Camera: 1080P
• Image transmission distance: 10~15km
• Horizontal speed: 0～15m/s
• Wind resistance: 6

Applications

• 3D Sand Table Modeling of Emergency Disaster
• Aerial emergency surveillance patrol
• Emergency communication network relay
• Power inspection
• Road patrol
• River conservancy inspection

Remote controller

Suspension components

N2TC-T320

10x optical zoom +Thermal imaging dual-optical three-axis gimbal

N2TC-T320 is a zoom dual-light integrated system that integrates a 10x optical zoom camera, thermal imager, and high-precision professional three-axis stabilizing pod.The pod adopts a high-precision encoder FOC control scheme, which has high stability, small size and weight. Light and powerful features; the visible light camera uses a low-illuminance sensor with 4 million effective pixels; the thermal imaging uses a 320x240 resolution detector with a baffle design. The system supports HDMI picture-in-picture output, local TF storage, dual-channel simultaneous recording, pseudo-color switching, temperature measurement, and multiple picture-in-picture modes.

Functions & Features

1. 10 times visible light + thermal imager Ø
2. Three-axis stabilization pod
3. Multiple thermal imaging pseudo-color modes
4. UART or SBUS command control
5. Multiple picture-in-picture mode, single HDMI output
6. OSD menu adjustment parameters
7. Real-time switching in zero seconds
8. Single TF card,Two-channel simultaneous recording
