NLB - 626 6 Rotors Agriculture Spraying Drone Carbon Fiber Pesticide Tank 26L
Price:
Negotiable
MOQ:
1set
Delivery Time:
15~25 days
Brand:
NLD
Product Description
NLB-626 6 Rotors Agriculture Spraying Drone Pesticide Tank 26L
| Model | NLB626 |
| Rotor | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 6*100KV |
| Electronic Speed Control | 150A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3612 |
| Pesticide Tank | 26L |
| Take-off Capacity | 63kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3.5~4m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min |
| Wheelbase | 2018mm |
| Folded Size | 1150*600*700mm |
| Battery / Quantity | 14S/25000mAh |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |

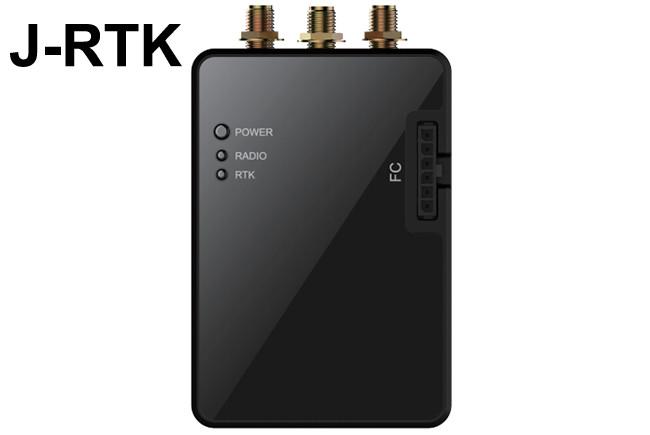

J-RTK centimeter-level precision positioning system
- J-RTK is a new generation of high-precision navigation and positioning system.
- It uses real-time dynamic difference technology to improve the three-dimensional positioning accuracy from meters to centimeters.
- It makes up for the shortcomings of traditional GPS and barometer solutions, and provides an accurate and reliable positioning solution for high-precision applications.
- J-RTK has the characteristics of high positioning accuracy and strong anti electromagnetic interference ability.
- It can also ensure reliable operation in strong magnetic interference environment such as high-voltage lines and metal buildings.

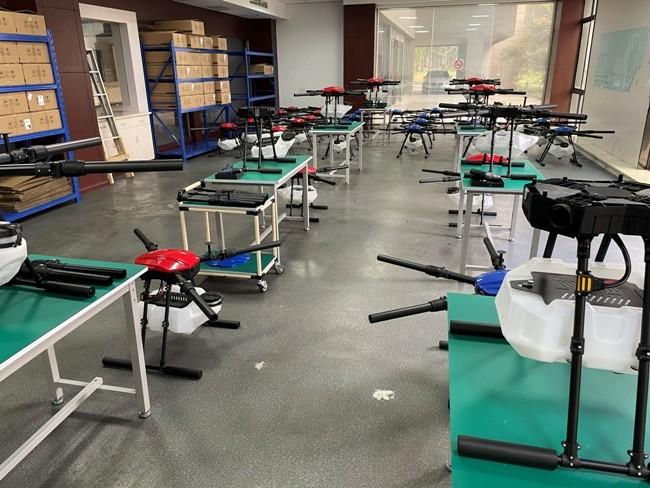

Workshop display
Other Models
| Model | NLB420 | NLB620 | NLB630 |
| Rotor | 4 | 6 | 6 |
|
Hovering accuracy horizontal |
+/- 1.5m | +/- 1.5m | +/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m | +/- 0.5m | +/- 0.5m |
| Wind resistance | 4～5 | 4～5 | 4～5 |
| Motor | 4*100KV | 6*110KV | 6*100KV |
| Electronic Speed Control | 150A | 150A | 150A |
| Motor applicable temperature | -20～50 | -20～50 | -20～50 |
| Foldable propeller | 3612 | 3411 | 3612 |
| Pesticide Tank | 20L | 20L | 30L |
| Take-off Capacity | 42kg | 54kg | 63kg |
| Flying Time (with payload) | 15~20min | 15~20min | 15~20min |
| Flying distance | 5000m | 5000m | 5000m |
| Working distance | 2000m | 2000m | 2000m |
| Flying Speed | 0~10m/s | 0~10m/s | 0~10m/s |
| Spray Width | 3.5~4m | 3.5~4m | 3.5~4m |
| Spray Flow | 1.2~2L/min | 1.2~2L/min | 1.2~2L/min |
| Spray Efficiency | 1500~2400sqm/min | 1500~2400sqm/min | 1500~2400sqm/min |
| Wheelbase | 2029mm | 2018mm | 2018mm |
| Folded Size | 1150*600*700mm | 1150*600*700mm | 1150*600*700mm |
| Battery / Quantity | 14S/22000mAh | 14S/22000mAh | 14S/28000mAh |
