19mm PMI Foam For Fishing Float Flexural Modulus 195Mpa
PMI Core Rohacell 110 Foam For Fishing Float
Why PMI foam for fishing float?
1. Large buoyancy ratio.
2. The material draft is small.
3. The material density is uniform and stable.
4. The material is strong and durable.
5. Strong plasticity.
6. The low cost of raw materials, rapid forming and high yield are very suitable for factory production.
Tasuns PMI foam specification:
- fine cores
- coarse cores
- ultra-fine cores.
| Density (kg/m³) |
Model | Mechanical properties at room temperature | ||||||||||
| Compressive strength | Compression modulus | Tensile Strength | Tensile modulus | Elongation at break | Shear strength | Shear modulus | Bending strength | Flexural modulus | Deflection | Closed cell rate | ||
| Mpa | Mpa | Mpa | Mpa | % | Mpa | Mpa | Mpa | Mpa | mm | % | ||
| Testing standard | GB/T 8813-2008 | GB/T 9641-1988 | GB/T 1455-2008 | GB/T 8812.2-2007 | GB/T 10799-2008 | |||||||
| 32 | XK32 | 0.32 | 14 | 0.66 | 28 | 3.8 | 0.28 | 7.6 | 0.86 | 31 | 22 | 99 |
| CX30 | 0.42 | 20 | 0.56 | 39 | 0.69 | — | — | 1 | 31 | 30 | — | |
| 40 | CK40 | 0.6 | 34 | 0.9 | 54 | 1.7 | 0.4 | 19 | 1.3 | 55 | 15 | — |
| CX40 | 0.72 | 29 | 1.2 | 51 | 3.4 | — | — | 1.7 | 58 | 33 | — | |
| 52 | CK52 | 0.9 | 41 | 1.2 | 73 | 1.9 | 0.73 | 27 | 1.6 | 70 | 19 | 99 |
| ZK52 | 0.9 | 51 | 1.3 | 81 | 1.2 | 1 | 26 | 1.5 | 65 | 15 | 97 | |
| XK52 | 1 | 43 | 1.5 | 77 | 3.1 | 0.9 | 24 | 2.1 | 76 | 22 | 99 | |
| 75 | CK72 | 1.4 | 59 | 1.8 | 101 | 2.3 | 1.2 | 40 | 2 | 92 | 13 | 99 |
| XK75 | 1.8 | 72 | 2.4 | 113 | 3.6 | 1.6 | 45 | 3.4 | 117 | 20 | 98 | |
| CX75 | 1.7 | 75 | 2.2 | 89 | 3.8 | 1.2 | 37 | 3.3 | 105 | 23 | — | |
| 110 | XK110 | 3.2 | 138 | 3.9 | 200 | 2.7 | 2 | 63 | 5.5 | 195 | 19 | 98 |
| CX110 | 2.2 | 93 | 3.3 | 160 | 3.6 | 2.2 | 63 | 4.5 | 143 | 21 | — | |
| 200 | XK200 | 8.5 | 317 | 7.5 | 410 | 2.4 | — | — | 13 | 449 | 22 | 99 |
Application for Tasun structrual foam:
PMI foam has been widely used in aviation, aerospace, military radar, maglev train, high-speed ship, automobile manufacturing, sports equipment, medical equipment, audio products and other fields.

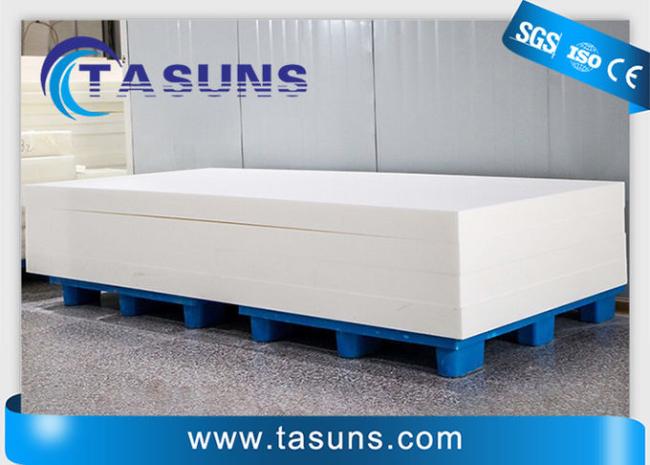

Our workshop:
FAQ:
1. How can I get the reasonable price efficiently?
-Quantity, specification and 3D drawing will be helpful.
2. What file format are available for you to open?
-DWG, DXF, STP, IGS are available.
3. What is your payment term?
-T/T and Paypal are common, other methods could be discussed.
