GYFTY63-24 Core Direct Buried Fiber Rodent Proof Cable B1 Non Metallic Direct Buried
Price:
Negotiation
MOQ:
1KM
Delivery Time:
30 working days after received your payment
Brand:
Yiyuan
Product Description

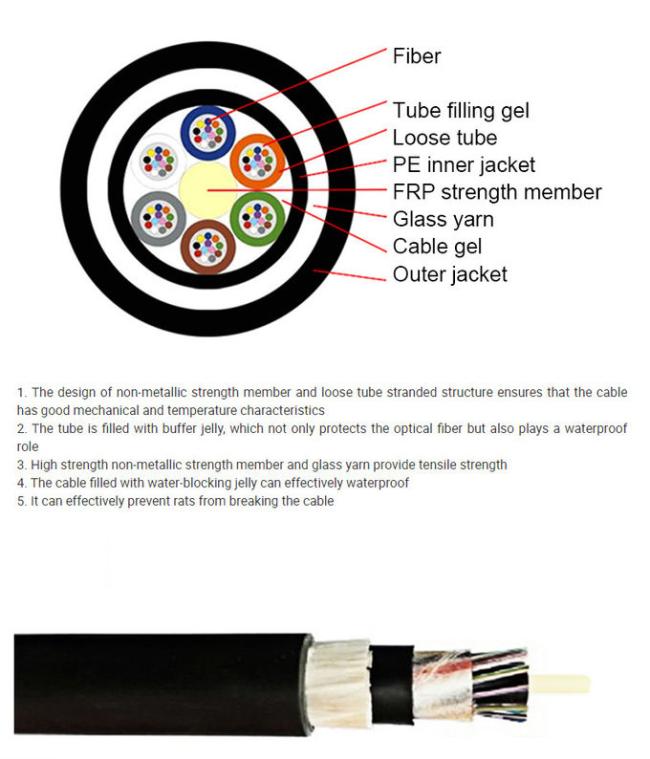

GYFTY63-24 Core Direct Buried Fiber Rodent Proof Cable B1 Non Metallic Direct Buried
Product Description
| 2-96 fibers | 98-288fibers | |||
| Max. Tension (N) | Short-term | 1500 | 3000 | |
| Max. Tension (N) | Long-term | 600 | 1000 | |
| Max. Crushing Resistance (N/100mm2) | 1000 | |||
| Temperature range(°C) | -40°C-- +70°C | |||
| Min. Bending Radius(mm) | Install | 20D | ||
| Min. Bending Radius(mm) | Static | 10D | ||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
