GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 direct buried Steel armoured cables
1. Cable structure
2. Cable Type: OFC-Armored GYFTY53 .652D-Direct buried -HDPE
Technical Characteristics
In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

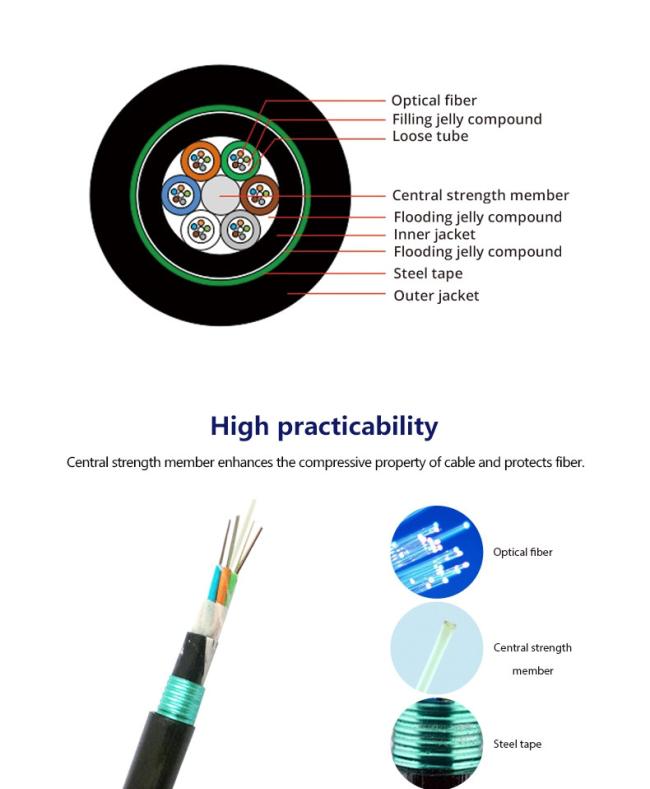

Construction:
1. Optical Fiber
2. Tube Filling Compound
3. Loose Tube
4. Cable Filling Compound
5. PE Inner Sheath
6. Water-blocking Tape
7. PSP Armored
8. PE Outer sheath
9. Steel Wire Strength Member
10. Fillers
Dimension and Properties
| Fiber count | 2-8 | 12 | 24 | 36 | 48 | 72 | 96 | 144 |
| Max. No of loose tube / filler No. | 1/5 | 2/4 | 4/2 | 6/0 | 4/2 | 6/0 | 8/0 | 12/0 |
| Fiber No. per tube | 6 | 12 | ||||||
| Loose tube diameter | 2.0mm | 2.2 | ||||||
| Central strength member diameter (FRP or steel wire ) | 2.0mm | 2.4mm | PE+FRP | |||||
| Outer sheath thickness | 1.8mm | |||||||
| Cable OD mm | 9.0 | 9.0 | 9.0 | 10.0 | 10.8 | 11.5 | 13.3 | 17.5 |
| Cable weight kg/km | 130 | 130 | 135 | 135 | 145 | 150 | 160 | 185 |
| Operation temperature range | -40 d℃ to + 70 ℃ | |||||||
| Installation temperature range | -40 ℃ to + 70 ℃ | |||||||
| Transport and storage temperature range | -40 ℃ to + 70 ℃ | |||||||
