Self Supporting GYXTC8S Figure 8 Fiber Cable Aerial 4-24 Core
Self Supporting GYXTC8S Figure 8 Fiber Cable Aerial 4-24 Core
Overhead 24 or 48 Core Single Mode Outdoor Fiber Optical Cable GYTC8S Price List Aerial Fiber Optic Cable Stainless Steel Cable
Loose tube stranded Figure 8 fiber self-support fiber optic cable(GYTC8S)

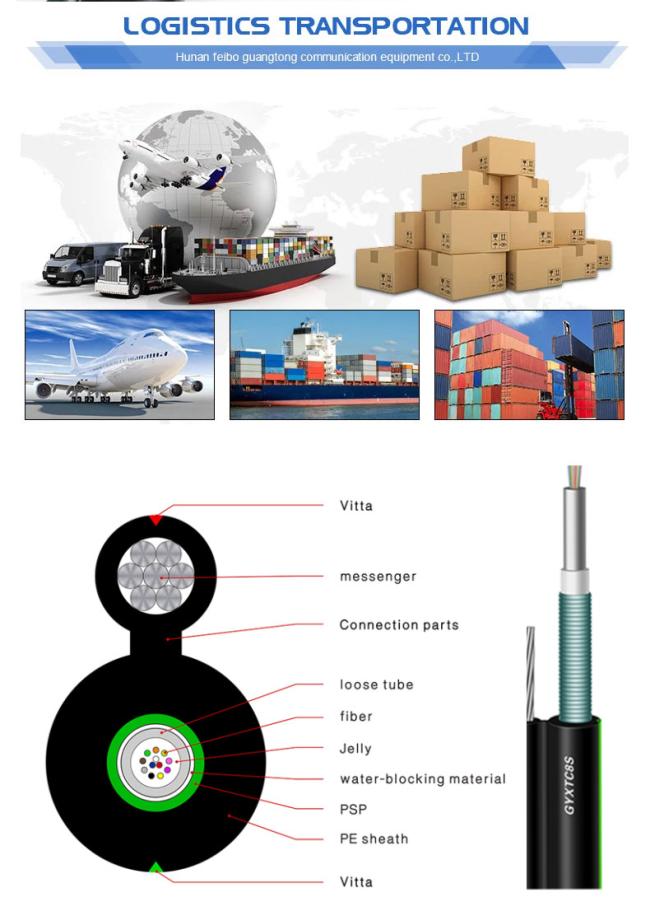

The structure of GYTC8S cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound. The cable core is wrapped in a plastic-coated steel (PSP) and integrated with the steel strand into an 8-figure polyethylene sheath. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.
Structural Parameter
| Model | Fiber count | Tube count | Filling rope count |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 | |||
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 | |||
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 | |||
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
