Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Price:
1000-2000 USD / MT
MOQ:
1 MT
Delivery Time:
5-25 Days
Brand:
XINZHENG
Product Description

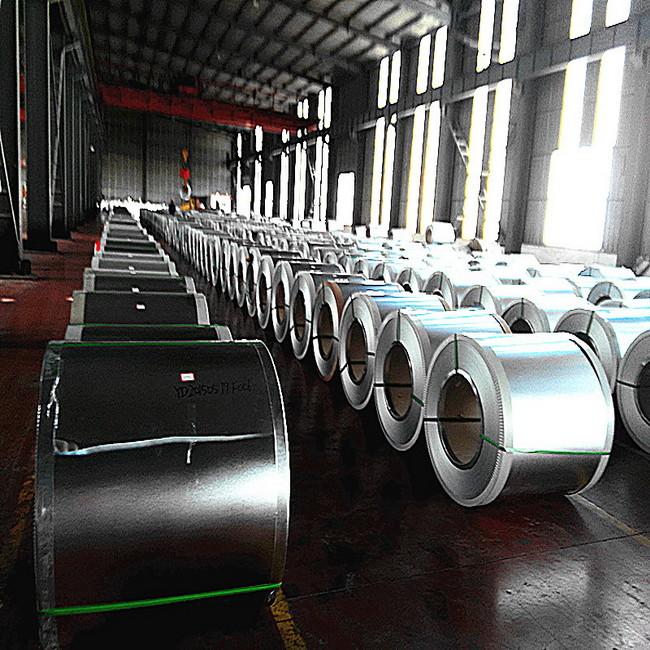

JIS ZERO Spangle Coated Galvanized Coil / GI Coil For Windows
Product Specification and Size :
| Hot-dip Galvanized Steel Coil | |||||||
| CNS 1244 2013 | JIS G 3302 2019 | ASTM A653M 2017 | AS1397 2011 | EN 10346 2015 | |||
| Specifications | Hot-rolled Base: | Cold-rolled Base: | Hot-rolled Base: | Cold-rolled Base: | DS | G1~G3 | DX51-52-53D |
| SGHC | SGCC | SGHC | SGCC | DDS | G250 | S220GD | |
| SGHD | SGCD | SGHD | SGCD | CS TYPE A, B, C | 300 | (250 | |
| SGH | 1~3 | SGH | 1~3 | FS TYPE A, B | 350 | 280 | |
| 340 | SGC | 340 | SGC | SS GRADE | 400 | 320 | |
| 400 | 340 | 400 | 340 | 33(230) | 450 | 350 | |
| 440 | 400 | 440 | 400 | 37(255) | 550 | 550) | |
| 490 | 440 | 490 | 440 | 40(275) | |||
| 540 | 490 | 540 | 490 | 50(340)CLASS 1~3 | |||
| 570 | 570 | 80(550)CLASS 1~3 | |||||
| Thickness of Base Steel (mm) | 1.2~4.60 | SGCD1~3: 0.27~2.0mm | 1.2~4.60 | SGCC,SGC340: 0.18~3.0mm; | DS: 0.27~2.0mm; | G1: 0.19~4.50mm; | DX51D: 0.19~4.50mm; |
| SGCC/SGC: 0.19~2.0mm | SGCD1~3: 0.25~2.0mm; | DDS: 0.25~2.0mm; | G2&G3: 0.27~2.0mm; | S220~550GD: 0.19~4.6mm; | |||
| SGC400, 440: 0.229~3.0mm; | CS/FS: 0.19~4.50mm; | G250~550GD: 0.19~4.6mm; | S250GD: 0.18~2.02mm; | ||||
| SGC490: 1.8~3.0mm; | SS GRADE 33~80: 0.19~4.50mm; | G300: 0.229~2.3mm; | DX52D: 0.295~2.0mm; | ||||
| SGC570: 0.229~2.2mm | CS TYPE A, B, C, Grade 33, 37: 0.18~3.0mm; | G350: 0.229~3.0mm; | DX53D, 54D: 0.25~2.0mm; | ||||
| FS TYPE A, B: 0.295~2.0mm; | G450: 0.6~3.0mm; | S280GD, S350GD: 0.229~3.0mm; | |||||
| Grade 40, 50: 0.229~3.0mm; | G500: 1.1~2.5mm; | S320GD: 0.229~2.3mm; | |||||
| Grade 55(380): 0.35~3.0mm; | G550: 0.229~2.2mm | S550GD: 0.229~2.2mm | |||||
| Grade 60(410): 0.47~1.6mm; | |||||||
| Grade 65(450): 0.6~3.0mm; | |||||||
| Grade 80: 0.229~2.2mm | |||||||
| Coating Mass: | Z08~Z60 | Z08~Z60 | Z90~Z600 | Z100~Z600 | Z100~Z350 | ||
| Regular Spangle | |||||||
| (thickness > 0.60mm) | |||||||
| Minimized (Zero) | |||||||
| Spangle | |||||||
| Surface Finish | Regular Spangle, Minimized (Zero) Spangle, Extra-Smooth | ||||||
| Surface Treatment | Chromating, Oiled, Resin Coated (Anti-Fingerprint), or Green Treatment (Environmentally Friendly Anti-Fingerprint) | ||||||
| Remarks | 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification. | ||||||
| 2. All products with thickness 2.0mm and under can be skin passed. | |||||||
| 3. The specification for thicknesses under 1.6mm for hot-rolled base metal according to JIS G3302 will be the same as for thicknesses 1.6mm. | |||||||
| 4. The coil inside diameters can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm. | |||||||
| 5. Please make inquiries to US for products with special specifications. | |||||||
| 6. Coating mass beyond the specifications above can be provided by Yieh Corp. upon mutual agreement between customers and us. | |||||||
| 7. Coating mass Z08, Z09 and Z90 only apply for cold-rolled base metals. | |||||||
Available Size
| Product Name | Base Type | Thickness (mm) | Width (mm) |
| Hot-dip Galvanized Steel Coil | Cold-rolled Base | 0.17~3.00 | 670~1650 |
| Hot-rolled Base | 1.20~4.60 | 670~1300 |
The table above shows the widest range of product dimensions. For a detailed
acceptable order range, please contact US.
