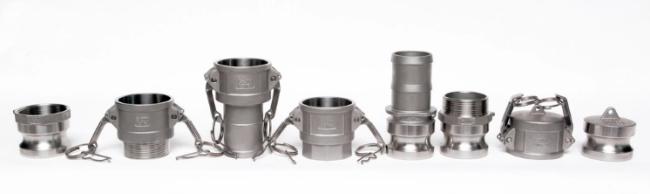

NBR Camlock Quick Couplings Stainless Steel Quick Coupler Plated
Camlock quick couplings also called cam and groove coupling, Camlock quick couplings is a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.
Camlock quick couplings Workmanship: precision casting or forged
Camlock quick couplings Application: petroleums, textiles, minings, brewings, inks, dyes, paper mills, processing plants chemicals, fertilizers,chemicals, processing CNC lathe processed
Advantage:
1. When connect or disconnect pipeline with Camlock quick couplings, It can operate simply, then save time and manpower.
2. Save fuel: there is Individual valve on the Camlock quick couplings, it can avoid the loss of oil andoil pressure.
3. Protect the environment
Applicable industry:
Quick disassembly pipeline, aerospace industry,metallurgical industry, ships accessories, chemicals, Municipal Engineering and so on.
Drawing:
| Product | Camlock quick couplings |
| Material | Stainless steel 316,304; brass; aluminium;PP |
| Type | A / B / C / D / E / F / DC / DP |
| Thread | NPT/BSP/BSPT/DIN2828. |
| Assembly parts | Stainless steel, brass, aluminium handles, pins rings and safety pins |
| Connection | Male;female |
| Gasket | Buna(NBR), and teflon, silica |
| Test pressure |
3/4"-2" 250PSI(17.6bar);3"-4" 200PSI(14.8bar); 21/2" 225PSI(15.8bar);6"150PSI(10.5bar) |
| Workmanship |
Precision casting or forged |
| Packing | Plastic bag → carton → wooden pallet |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What's your MOQ ?
A: MOQ is 1000 usually. But MOQ of each product is different.
Q: Can I get a sample for testing ?
A: Yes, we can provide you a sample for reference, but you may pay for the sample and shipping fee.
Q: Can you do the design for us?
A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We will send you finished files for confirmation.
Q: How to proceed an order?
A: Stepl Let us know your requirements or application.
Step2 We quote according to your requirements or our suggestions.
Step3 Customer confirms the samples and places deposit for formal order.
Step4 We arrange the production.
Q: Can I print my logo on the products ?
A: Yes, we can print your logo on the products as you required.
Q: What's the lead time?
A: It will be 1-5 days for sample and 2-12 days for bulk order, it depends on your required.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
