1km Outdoor Fiber Optic Cable Drop FTTB Steel Wire 12 Conductors
UT-King GJYXCH Outdoor Optical Fiber Cable FTTH Fiber Optic Drop Cable
Description

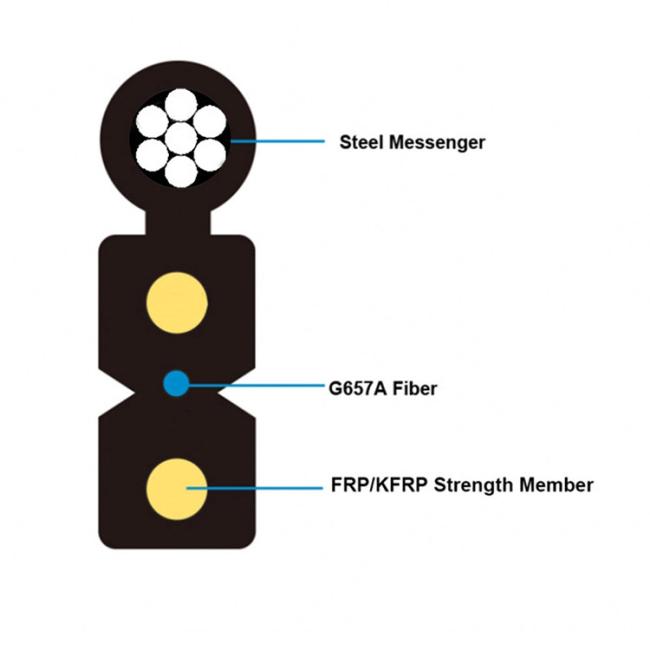

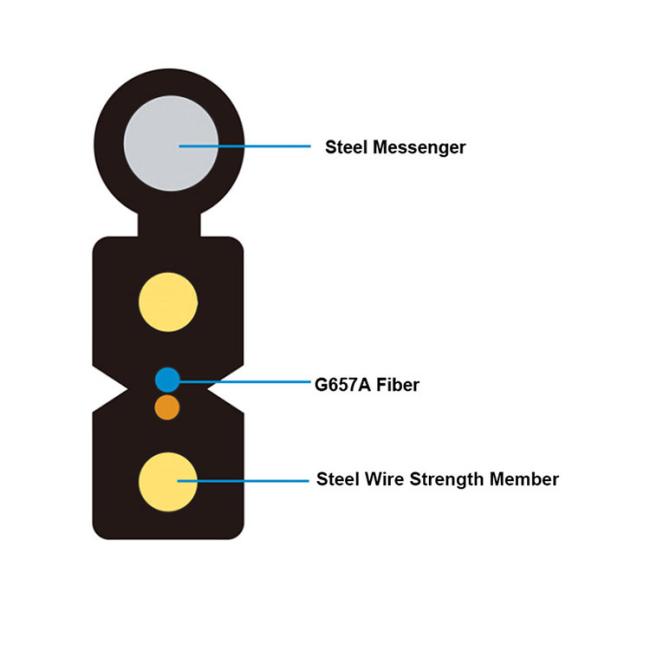

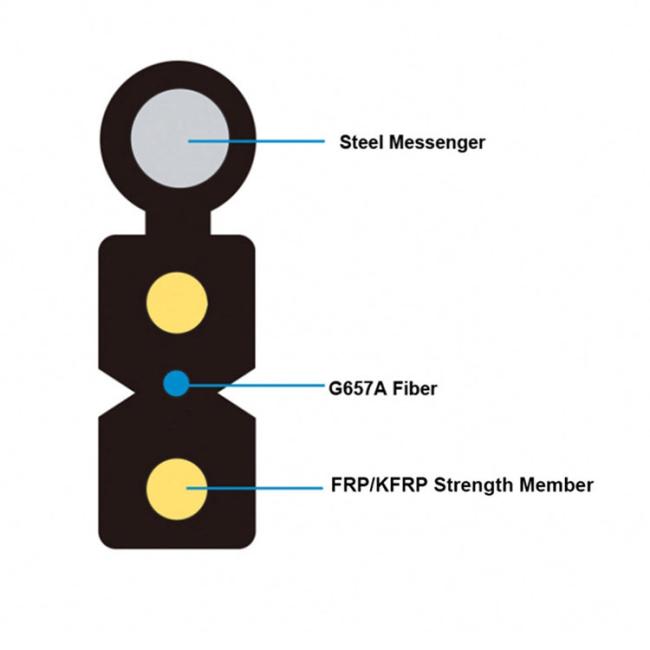

UT-King’s outdoor ftth drop cable used as connection part in last 1 kilometer between optical distribution point and users’ premise. Its compact structure provide the advantages of light weight and small size. In the middle of cable, it’s fiber, which can be 1-4 cores. On both sides, there’re two parallel steel wire(FRP) to strengthen tensile of cable; then, adding a self-supporting messenger. At last, sheathed with LSZH/PE/PVC material.
Features
- Extreme smaller diameter, light weight, flexible, easily installed
- Two parallel Steel or FRP line with excellent anti pressure performance to protect fiber core
- Single extra steel wire make cable with strong tensile strength
- Groove design of 8 type, easy to rip, install and maintain
- Adopt the fiber core excellent than ITU G657 standard .657 st
Application
- Used in access network or as access cable from outdoor to indoor in customer premises .
- Used as access building cable in premises distribution system,
- Especially used in indoor or outdoor aerial access cabling.
Specification
| Item | 1fiber | 2fibers | 4fibers | |||
| Self-support Strength Member Material | FRP/ Steel wire | FRP/ Steel wire | FRP/ Steel wire | |||
| Self-support Strength Member Diameter(mm) | 1.0 | 1.0 | 1.0 | |||
| Strength Member Material | Steel Wire | Steel Wire | Steel Wire | |||
| Cable Diameter(mm) | 2.0*5.0 | 2.0*5.0 | 2.0*5.0 | |||
| Sheath Thickness(mm) | ≥0.40 | ≥0.40 | ≥0.40 | |||
| Strength Member Diameter (mm) | 0.4 | 0.4 | 0.4 | |||
| Cable Weight(kg/km) | 20 | 20.5 | 21.5 | |||
| Operating Temperature Range(℃) | -50~+70 | -50~+70 | -50~+70 | |||
| Tensile Strength Short/Long term(N/100mm) | 2000/800 | 2000/800 | 2000/800 | |||
| Crush Resistance Short/Long term(N/100mm) | 2200/1000 | 2200/1000 | 2200/1000 | |||
| Min. Bending Radius(mm) | 120 | 120 | ||||
| Min bending radius(mm) | 10/25 | 30/60 | ||||
| Outer sheath | PVC /LSZH/LLDPE More | |||||
| Fiber count | 1/2/4/8/12 | |||||
| Fiber Type | G657A1/G657A2/G652D | |||||
| Attenuation | 1310nm | 1550nm | ||||
| Typical | Max | Typical | Max | |||
| 0.36/0.5 dB/km | 0.22/0.4 dB/km | |||||

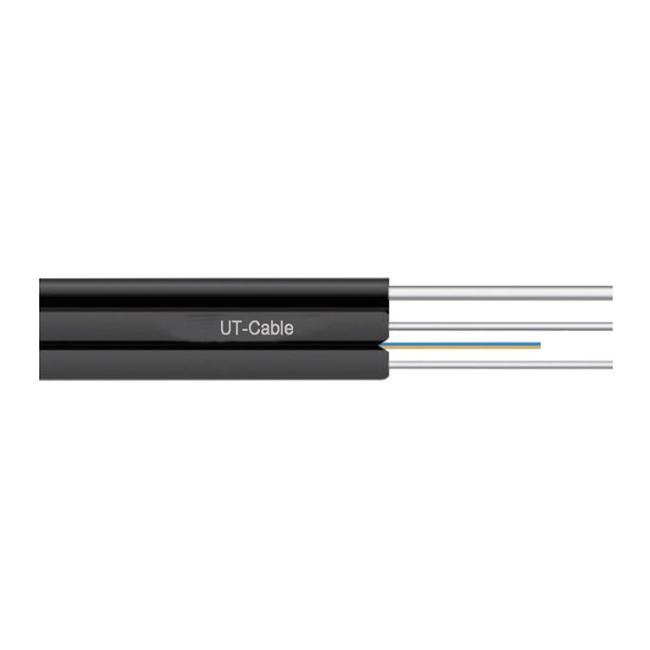

Detailed Images
FAQ
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
