Outdoor Fiber Optical Splitter Box Wall Mount Fiber Distribution Box 16 Core Splitter Box

Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

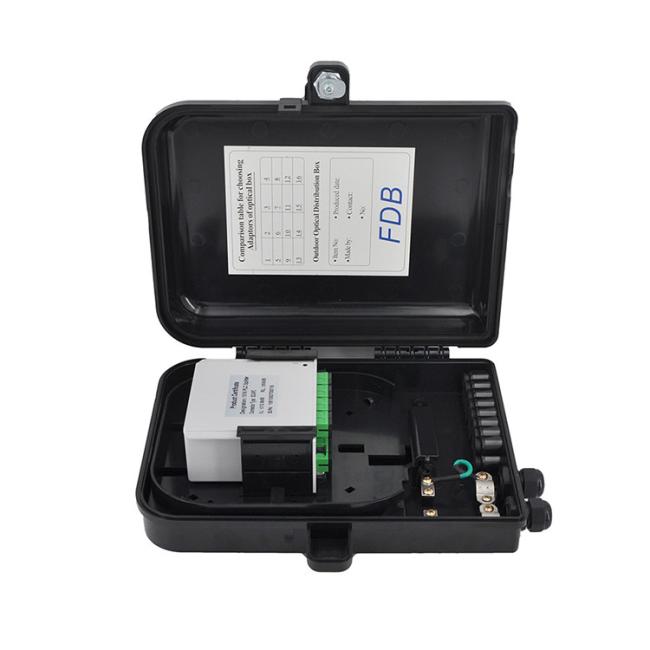

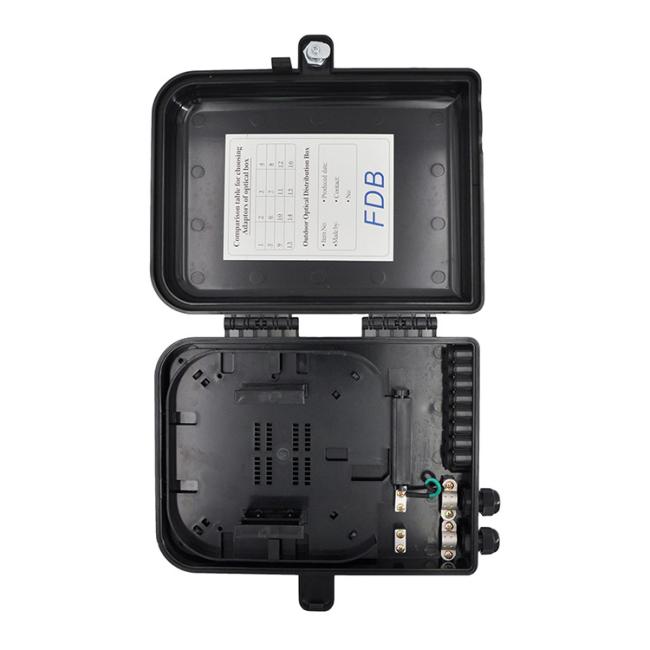

UT-King's Fiber distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Features

•  Be made of high impact plastic PC/ABS
• Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
• The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
• Up to 16 FTTH drops ,2 inlet ports, 32 outlet ports

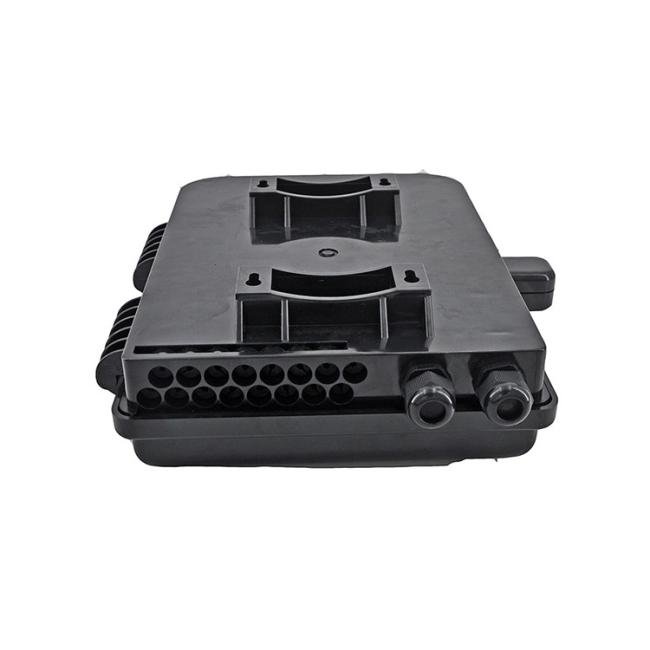

• Wall and pole mountable
• The design of the two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

Specification

Detail Images

Installation:

1．Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic 6)

2．Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .

Accessories

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

5. Easy pole ring*2,M6*20mm Bolt*2(Option)
