FDB 216A Fiber Optic Junction Box Odf 330mm 4 In 16 Out Indoor
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3-5days
Brand:
UT-King
Product Description
UT-King Outoodr Indoor Waterproof 4 In 16 Out Fiber Optic Cable Joint Box
Description
UT-King’s fiber distribution box (FDB) is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
- Total enclosed structure.
- Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
- Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
| Model | UT-FDB216A |
| Dimension | 295mm*220mm*85mm |
| Color | White,Black or customized |
| Material | 70%PC+30%ABS |
| Max ratio | 1:16 |
| Cable entry ports | In 2 Out 16 |
| Diameter of Cable | Φ13mm |
| Assemmbling method | pole, wall-mounting |
| Protection level | IP65 |
| Outter carton size | 610*510*330mm |
| number of Packing | 10 pcs/ctn |
| weight | 16kg /ctn |

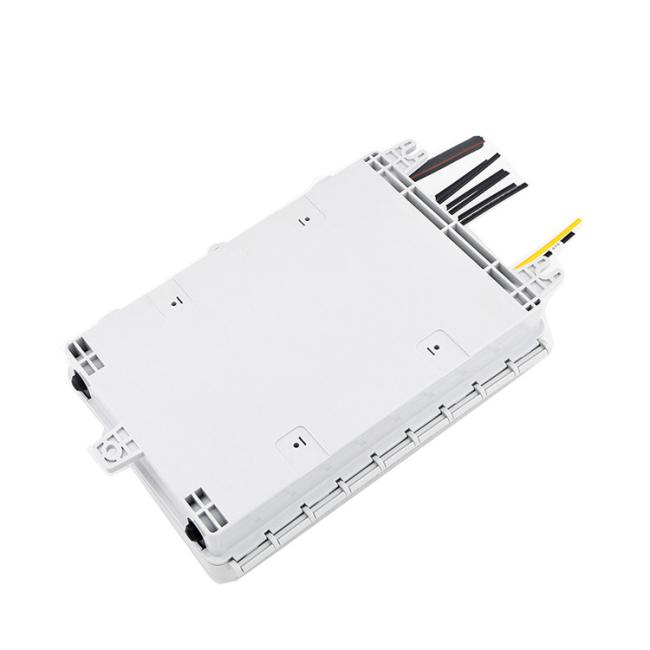

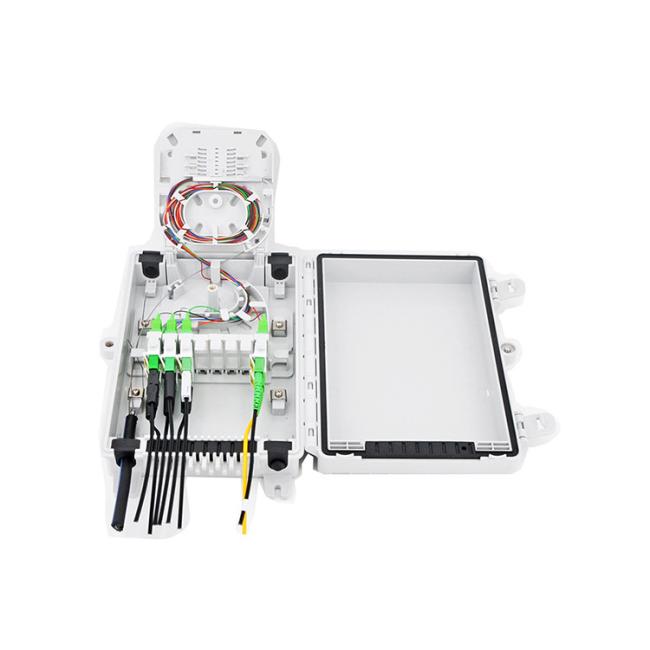

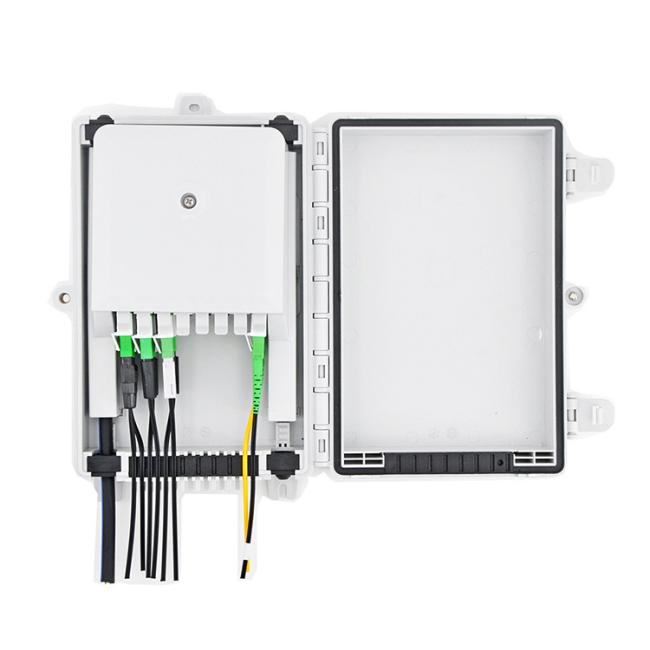

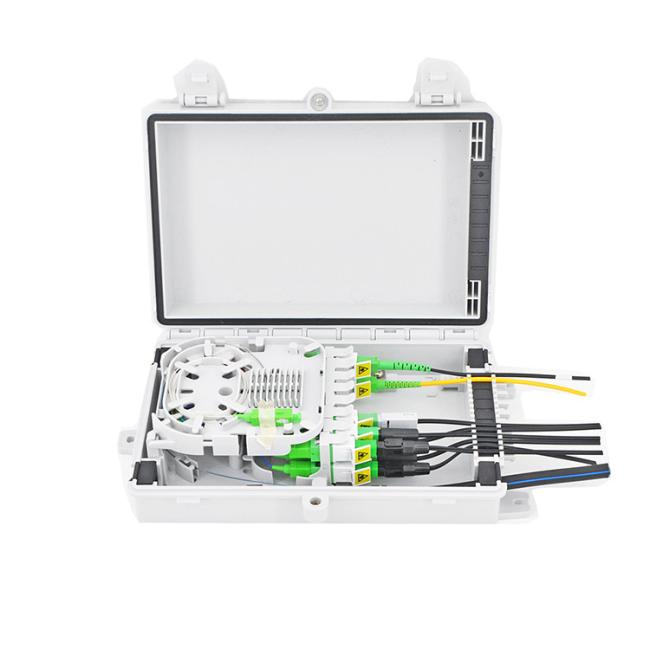

Detail Images
Installation:
1．Wall-mounted installation
2．Pole-mounted installation
