3.5 Inch Optical Fiber Identifier Traffic Fiber Detector Telecommunication Tool
Telecommunication Tool Optical Fiber Identifier Fiber Detector With FTTH ToolKit
Description
UT-King’s UT-OPI3326D Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function. Using the macro bending technology on line for nondestructive testing, OPI3326D can measure the signal direction and power and avoid misoperation resulting in interrupted lines.
Features
- Using macro bending technology to test the fiber without destruction
- measuring the signal direction and power, to avoid misoperation which result in line interruption
- Portable design, the streamline appearance of the body, which reflects the people-oriented design concept
- Macro bending measurement, no damage of the fiber, no interrupt of the communication
- Audio recognition, optical fiber identifier device can detect the fixed audio signal is loaded in the light signal
- Low power monitoring function, the photoelectric bring power monitorin
- Support VFL function
Specification
| Wavelength range | 750nm-1700nm |
| Inseron loss | 1.0dB |
| Available fibers | diameter <3mm |
| Frequency Test Range | 270Hz/1KHz/2KHz |
| Identify the fiber direction | Yes |
| Measurement of power | Yes |
| Singe display | LED digital display |
| Cue sounds | Yes |
| Low power measurement | Yes |
| Detector type | 1mm InGaAs |
| Singe Direction Test Range |
-35dBm(1550nm) With VFL function -30dBm(1310nm) |
| Yes | |
| Wavelength | 650nm |
| Output power | 10mW |
| Battery | Alkaline Battery |
| Battery work time | >60H |
| Auto power off | Yes |
| Work Temperature | 0~+50℃ |
| Storage Temperature | -20~+60℃ |
| Weight | 200g |
| Dimension | 230*43*48mm |

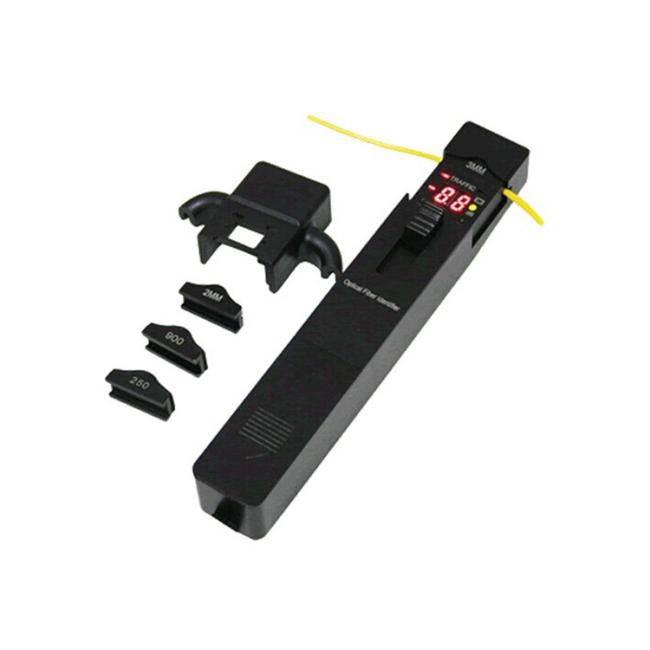

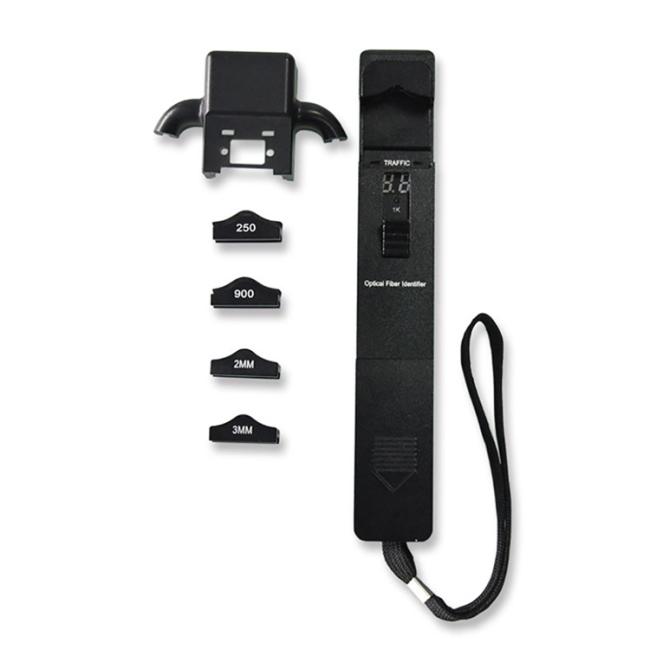

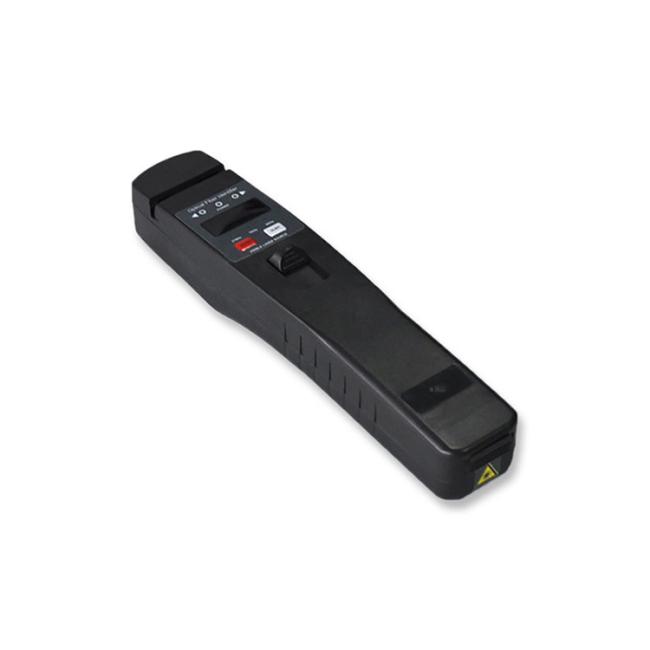

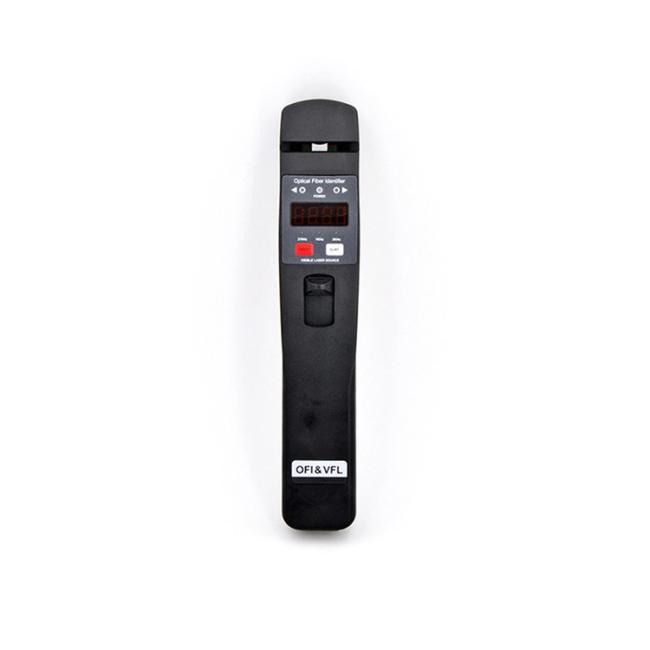

Detailed Images
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
