PDLC Outdoor Sc Upc Patch Cord ROHS Lc To Fc Patch Cord Duplex
Outdoor Water Proof PDLC Duplex LC Connectors Field Cable Assembly Patch Cord PDLC Patch Cord
Description
UT-King’s PDLC connectors and required optical cables have become standard interface applications for 4G,5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
Features
- Fast connection,the unnique spira structure makes connection easy and fast.
- Water and dust proof,t here is rubber cushion inside,the stability is good and the grade can be IP67.
- Low insertion/return loss, steady optical transmitting.
- Light weight, waterproof, dustproof, moisture proof, Metal hard housing
- Wide range of operational temperature for outside plant -40 to+85°C
- 100% optically tested to ensure quality performance assemblies.
Specification
|
Type |
SM- PDLC-LC/UPC | SM- PDLC-LC/APC | MM- PDLC-LC/PC | |||||||
| Typical | MAX | Typical | MAX | Typical | MAX | |||||
| Insertion loss | ≤0.1dB | ≤0.3dB | ≤0.15dB | ≤0.3dB | ≤0.05dB | ≤0.3dB | ||||
| Return loss | ≥50dB | ≥60dB | ≥35dB | |||||||
| Durability | 500 mating cycles | |||||||||
| StorageTemp(℃) | +40 to + 85℃ | |||||||||
| Fiber type | Single mode | G652D | G655 | 9/125-G657A,G657A2 | 9/125-G657B3 | |||||
| Multimode | 50/125 | 62.5/125 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |||||
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||||||
| Cord type | 2 Cores | |||||||||
| Cable diameter | 5.0mm ,7.0mm | |||||||||
| Cable jacket | PVC, OFNR, LSZH, Armored | |||||||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||||||

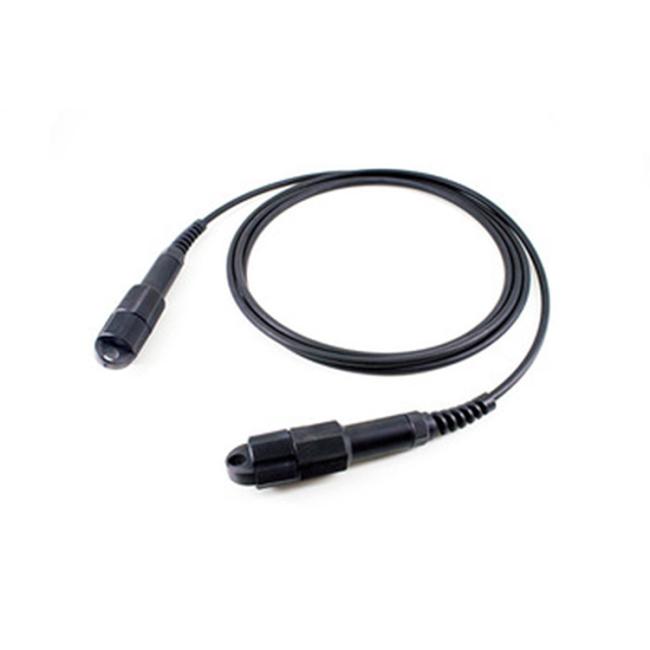

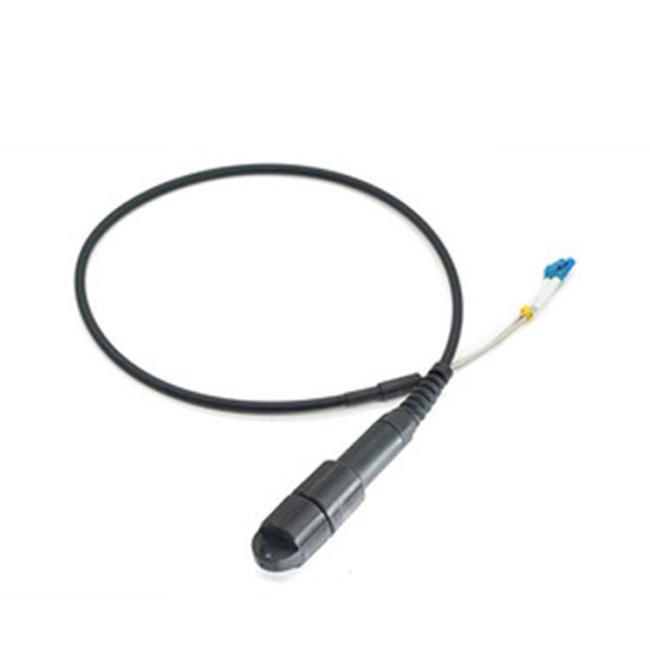

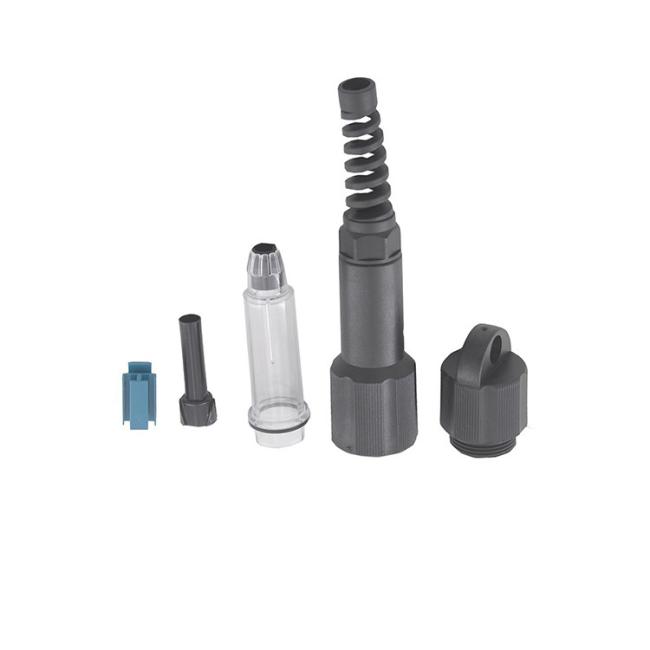

Detailed Images
FAQ
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
