China Small Optical Fiber 1 / 10G Uplink 16 Port GPON OLT ZTE ZXA10 C320 for sale

Small Optical Fiber 1 / 10G Uplink 16 Port GPON OLT ZTE ZXA10 C320

Name: Small Optical Fiber 1 / 10G Uplink 16 Port GPON OLT ZTE ZXA10 C320
Brand: Shenzhen UT-King Technology Co., Ltd.

Price Negotiable

Price: USD 1580-1850 per pieces

MOQ: 1 pcs

Delivery Time: 5-8 work days

Product Description

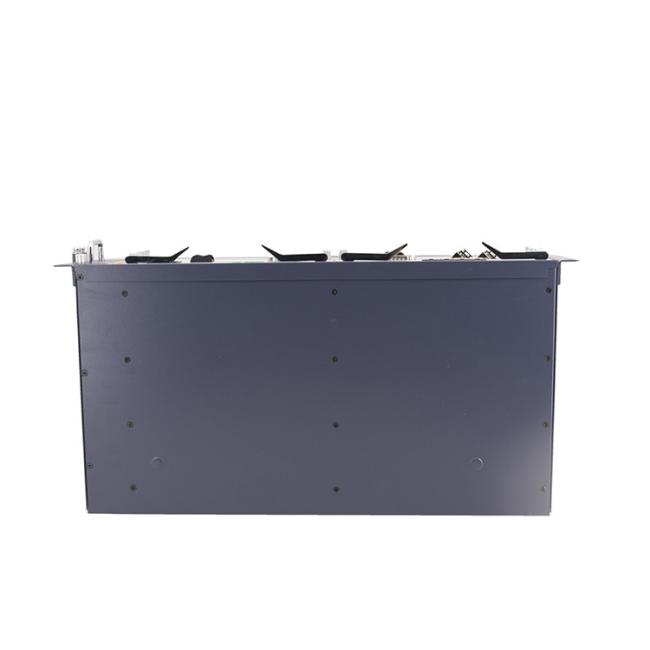

Small Optical Fiber OLT 1/10G Uplink 16 Port GPON OLT ZTE ZXA10 C320 OLT

ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS andsecurity reliability.

Meanwhile ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS
andreliable network to meet the requirements for small-scale implementation of FTTx services.

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts Nlarge-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.

Product Paramenters

			Physical dimension

			86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)

			Power supply

			-48V/-60v dual-channel DC, 220V AC +48V backup power

			Cabinet

			Outdoor/building: EC90EB/EC70E indoor and outdoor integrated cabinets

			Dedicated machine room: indoor 19-inch standard cabinet

			Main control switch board

			Panel interface: 1*10GE or GE (optical)+1*GE or FE (optical)+1*GE/FE (electric) +1*maintenance serial port+1*management network

			port+1*environmental monitoring interface

			SMXA

			Ethernet uplink: maximum support 2*10GE+4*GE or 6*GE

			Typical business line card

			ETGO(8*EPON)/GTGO(8*GPON)；ETGH(16*EPON)/GTGH(16*GPON)

			(2 slots)

			FTGK(24/48*P2P) ETTO(8*10G-EPON)/GTXO(8*XG-PON1)
