Spirulina Plastic Screw Feeder Auger Dosing 12m3/H Capacity 50Hz
Customized Voltage Auxiliary Brewing Equipments / Flexible Screw Feeder
Features
Works with packaging machine for feeding multiple powdery products.
Two motors used for feeding and vibrating are separately controlled.
Products hopper can be separated from the tube for easy assembly.
Reversible dismountable auger and discharge gate insure easy cleaning.
| Tube Diameter | Φ102 | Φ114 | Φ141 | Φ168 | Φ219 |
| Capacity | 2m3/h | 3m3/h | 5m3/h | 8m3/h | 12m3/h |
| Power Supply | 380V 50Hz 0.55Kw | 380V 50Hz 0.75Kw | 380V 50Hz 1.5Kw | 380V 50Hz 3Kw | 380V 50Hz 4Kw |
| Outer Height | 1.6m / 1.8m / 2m / 3m / Customised | ||||
| Hopper Volume | 100KG-300KG / Customized | ||||
| Material | Stainless steel 304 | ||||
The discharge box is generally setup for a 45 degree discharge however we offer 0, 15, 30, 45, 60 and 90 degree discharges which is dependent upon conveyor diameter and the customers layout. The drives that provide the auger rotation include both in-line ratio multipliers and right angle gearboxes. Right angle gearboxes are usually selected where headroom is an issue and if a very low auger speed is required. Typical auger rotations range from 60 to 350 RPM. There are many options for motors including standard TEFC, premier efficient, wash down duty, inverter duty and various explosion proof models.

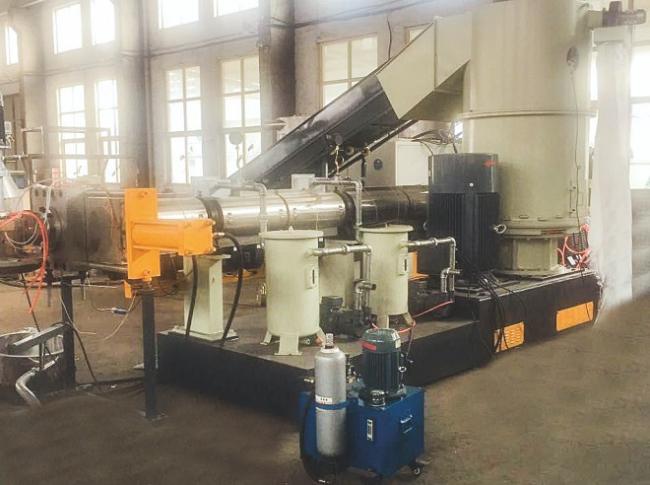

YUANCHUN is specialized in research, production and sales of plastic recycling machines and plastic pelletizer. Base on the deep technology accumulation and invention patents, YUANCHUN is standing on the top position of plastic recycling industry and has been supplying the high efficiency and cost-saving solutions of recycling to more than 500 customers in China and abroad.
The screw feeder is mainly used with extruders of various specifications to automatically convey plastic materials from storage tank to the hopper. It achieves the automatic feeding through the circulation controlled by material level sensor. It features stable function, labor saving, safe and reliable.
