75mm 2MP OPT Fixed Focal Length Lenses WD 700-∞ 0.16kg F2.8~F32
2MP Fixed Focal Length Lenses WD 700-∞ Focal Length 75mm 0.16kg F2.8~F32 OPT-C7528-2M
◆ Back focal length (mm): 18mm.
◆ The sensor format of OPT-C7528-2M: 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.
◆ FOV angle (H×V×D) is 3.2° | 3.9° | 4.7° | 5.7°, 2.4° | 2.9° | 3.6° | 4.9°, 3.9° | 4.8° | 5.9° | 7.5°.
◆ The distortion is less than 0.02%.
| Product Name | 2MP Fixed Focal Length Lenses |
|---|---|
| Model |
OPT-C7528-2M
|
| Focal Length | 75mm |
| Aperture range | F2.8~F32 |
| Working Distance(mm) | 700mm-∞ |
| Distortion(%) |
Less than 0.02% |
| Back focal length (mm) |
18mm |
| Weight(kg) | 0.16 |
|
Sensor format
|
1/3″ | 1/2.5″ | 1/1.8″ | 2/3″
|
|
FOV angle
(H×V×D)
|
3.2° | 3.9° | 4.7° | 5.7° 2.4° | 2.9° | 3.6° | 4.9° 3.9° | 4.8° | 5.9° | 7.5° |

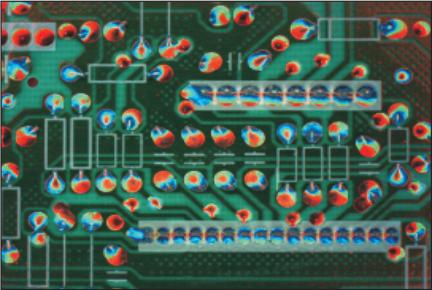

Application Examples:
Dimensions (mm)
|
|
OPT lenses include 2MP/5MP/10MP/29MP and zoom lenses, Cobra series fixed focal length lenses, high accuracy line scan lenses, high resolution telecentric lenses, etc.
OPT industrial cameras can be mainly divided into area scan cameras of global shutter and rolling shutter with resolution stretching from 0.5MP to 15000MP, and line scan cameras which are compatible with GigE Vision protocol, USB3.0 Vision protocol, CameraLink protocol, CoaXPress protocol and GenlCam standard with resolution ranging from 2K to 16K.
